| Size： | 200mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

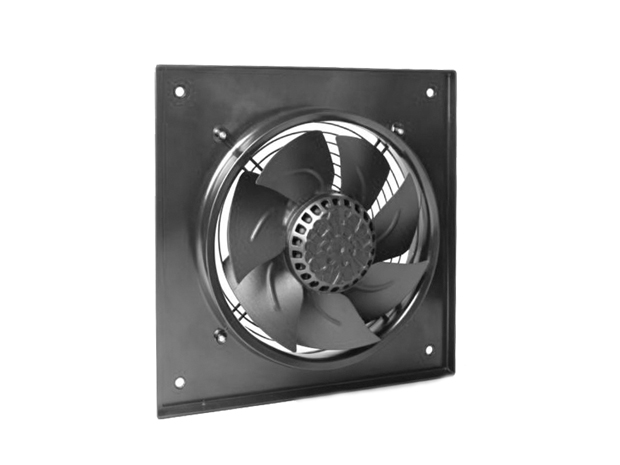

Item code: 200FZL-7P-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type

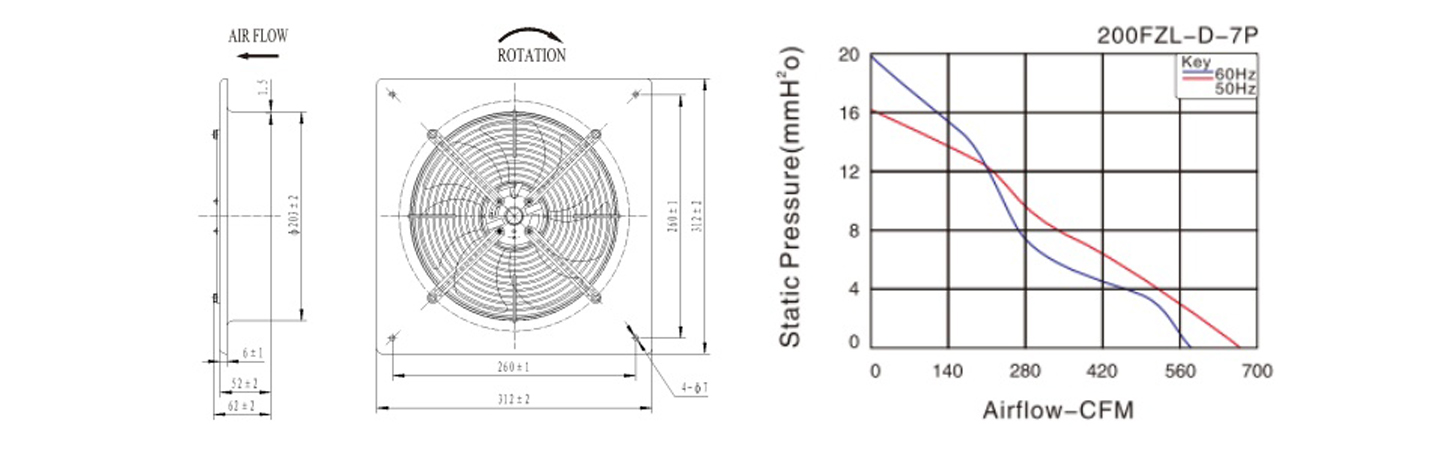

| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 200FZL5-7P-D | Ball | 100/125 | 50/60 | 0.68/0.65 | 60/72 | 2700/3100 | 59/61 | 579/661 | 1 | 4/500 |
| 200FZL6-7P-D | Ball | 200/240 | 50/60 | 0.25/0.33 | 54/71 | 2700/3100 | 59/61 | 579/661 | 1 | 2.2/500 |
| 200FZL7-7P-D | Ball | 380/420 | 50/60 | 0.25 | 50 | 2700/3100 | 59/61 | 579/661 | 3 | / |
| 200FZL8-7P-D | Ball | 380/420 | 50/60 | 0.23/0.20 | 68/76 | 2700/3100 | 59/61 | 579/661 | 1 | 1/500 |
