| Size： | 250mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

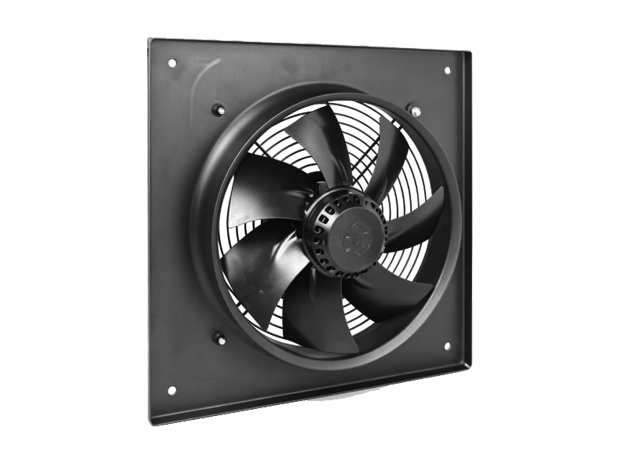

Item code: 250FZL-7P-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type
| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 250FZL2-7P-D | Ball | 200/240 | 50/60 | 0.30 | 50 | 1300/1500 | 60/65 | 530/600 | 1 | 4/500 |
| 250FZL3-7P-D | Ball | 380/420 | 50/60 | 0.20 | 50 | 1300/1500 | 60/65 | 530/600 | 3 | / |
| 250FZL4-7P-D | Ball | 380/420 | 50/60 | 0.35 | 50 | 1300/1500 | 60/65 | 530/600 | 1 | 2.2/500 |
| 250FZL1-7P-D | Ball | 100/125 | 50/60 | 1.2/1.3 | 126/148 | 2500/2800 | 69/70 | 1098/1160 | 1 | 2.8/500 |
| 250FZL6-7P-D | Ball | 200/240 | 50/60 | 0.58/0.63 | 126/148 | 2500/2800 | 69/70 | 1098/1160 | 1 | 4/500 |
| 250FZL7-7P-D | Ball | 380/420 | 50/60 | 0.75/0.90 | 120/136 | 2500/2800 | 69/70 | 1098/1160 | 3 | / |
| 250FZL8-7P-D | Ball | 380/420 | 50/60 | 0.24/0.25 | 120/136 | 2500/2800 | 69/70 | 1098/1160 | 1 | 2/500 |
