| Size： | 250mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

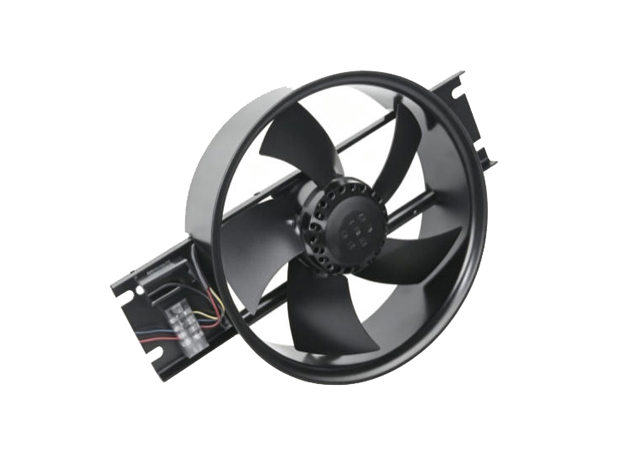

Item code: 250FZY-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type

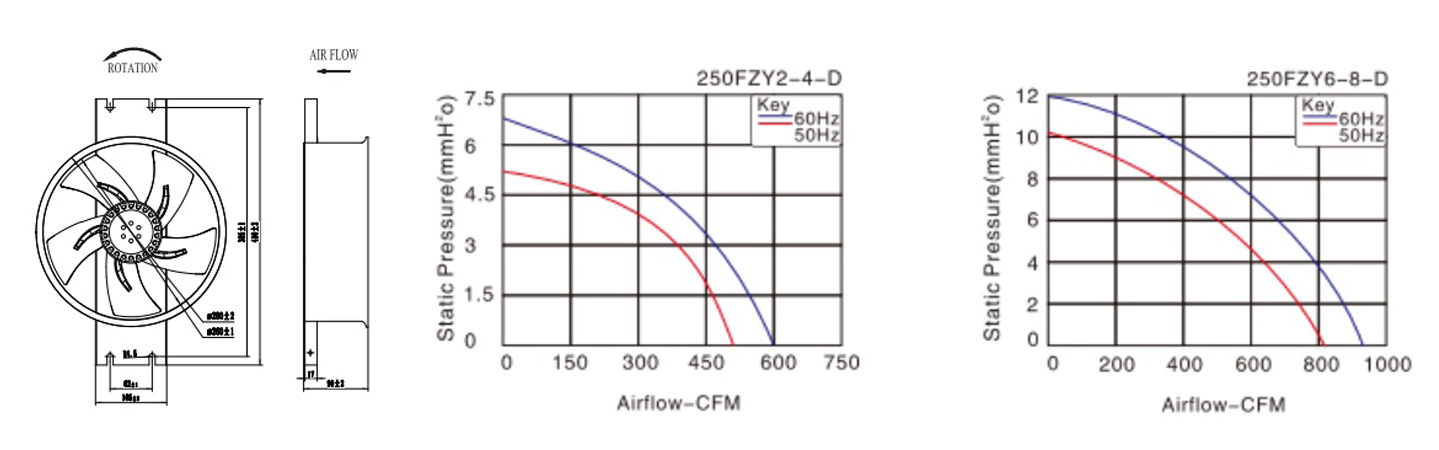

| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 250FZY2-D | Ball | 200/240 | 50/60 | 0.20 | 40 | 1300/1500 | 58/63 | 494/565 | 1 | 4/500 |
| 250FZY3-D | Ball | 380/420 | 50/60 | 0.10 | 40 | 1300/1500 | 58/63 | 494/565 | 3 | / |
| 250FZY4-D | Ball | 380/420 | 50/60 | 0.12 | 40 | 1300/1500 | 58/63 | 494/565 | 1 | 2/500 |
| 250FZY6-D | Ball | 200/240 | 50/60 | 0.50 | 100 | 2300/2700 | 68/73 | 776/870 | 1 | 4/500 |
| 250FZY7-D | Ball | 380/420 | 50/60 | 0.20 | 100 | 2300/2700 | 68/73 | 776/870 | 3 | / |
| 250FZY8-D | Ball | 380/420 | 50/60 | 0.35 | 100 | 2300/2700 | 68/73 | 776/870 | 1 | 2/500 |
