| Size： | 300mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

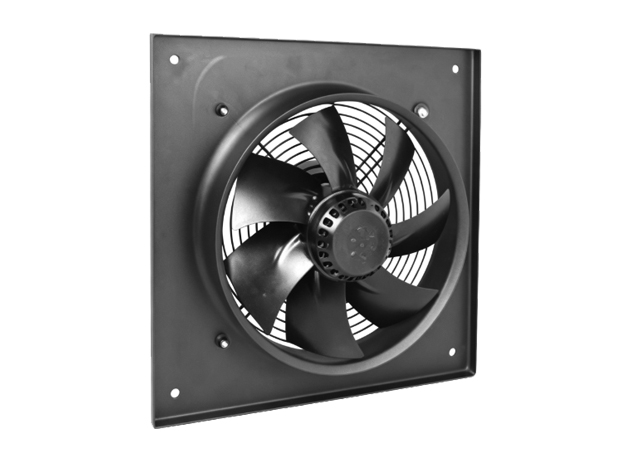

Item code: 300FZL-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type
| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 300FZL2-7P-D | Ball | 220/240 | 50/60 | 0.35 | 80 | 1300/1500 | 68/71 | 920/955 | 1 | 4/500 |
| 300FZL3-7P-D | Ball | 380/420 | 50/60 | 0.30 | 80 | 1300/1500 | 68/71 | 920/955 | 3 | / |
| 300FZL4-7P-D | Ball | 380/420 | 50/60 | 0.35 | 80 | 1300/1500 | 68/71 | 920/955 | 1 | 2.2/500 |
| 300FZL6-7P-D | Ball | 220/240 | 50/60 | 0.50 | 150 | 2200/2500 | 73/78 | 1240/1350 | 1 | 4/500 |
| 300FZL7-7P-D | Ball | 380/420 | 50/60 | 0.50 | 150 | 2200/2500 | 73/78 | 1240/1350 | 3 | / |
| 300FZL8-7P-D | Ball | 220/4240 | 50/60 | 0.50 | 150 | 2200/2500 | 73/78 | 1240/1350 | 1 | 2.2/500 |
