| Size： | 300mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

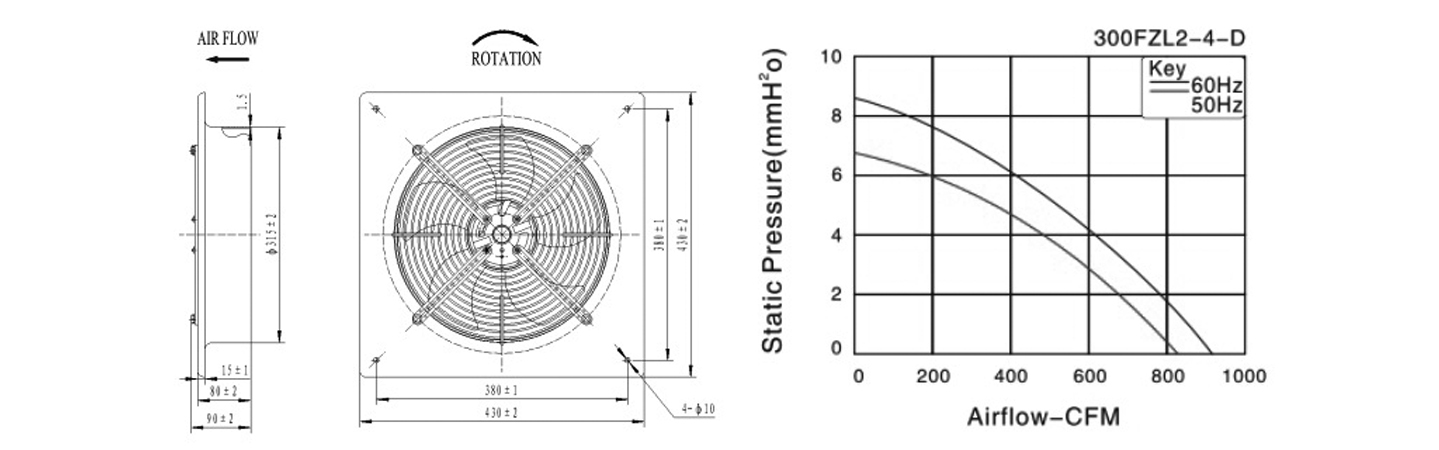

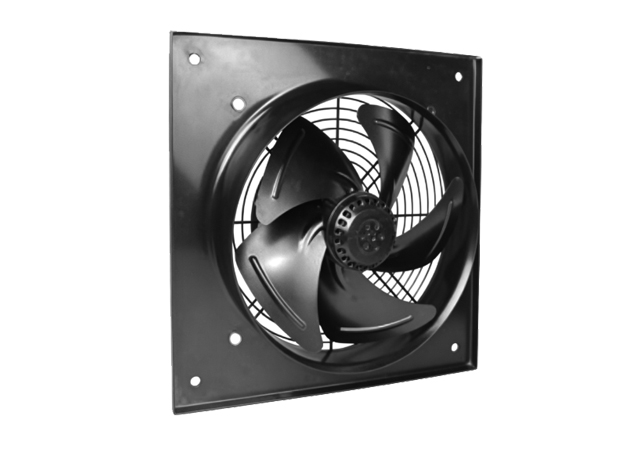

Item code: 300FZL-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type
| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 300FZL2-D | Ball | 200/240 | 50/60 | 0.40 | 80 | 1300/1500 | 65/68 | 847/931 | 1 | 4/500 |
| 300FZL3-D | Ball | 380/420 | 50/60 | 0.22 | 80 | 1300/1500 | 65/68 | 847/931 | 3 | / |
| 300FZL4-D | Ball | 380/420 | 50/60 | 0.25 | 80 | 1300/1500 | 65/68 | 847/931 | 1 | 2.2/500 |
