| Size： | 300mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

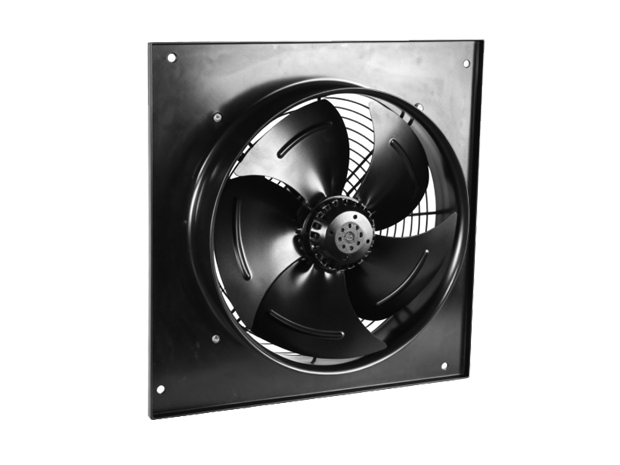

Item code: 350FZL-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type
| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 350FZL2-D | Ball | 200/240 | 50/60 | 0.48/0.56 | 100/124 | 1360/1550 | 62/65 | 1695/1836 | 1 | 5/500 |
| 350FZL3-D | Ball | 380/420 | 50/60 | 0.35 | 150 | 1360/1550 | 62/65 | 1695/1836 | 3 | / |
| 350FZY4-D | Ball | 380/420 | 50/60 | 0.40 | 150 | 1360/1550 | 62/65 | 1695/1836 | 1 | 2.2/500 |
| 350FZY6-D | Ball | 200/240 | 50/60 | 0.42 | 91 | 950/1050 | 56/60 | 1235/1353 | 1 | 3/500 |
| 350FZY7-D | Ball | 380/420 | 50/60 | 0.30 | 91 | 950/1050 | 56/60 | 1235/1353 | 3 | / |
| 350FZY8-D | Ball | 380/420 | 50/60 | 0.35 | 91 | 950/1050 | 56/60 | 1235/1353 | 1 | 2/500 |
