| Size： | 400mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

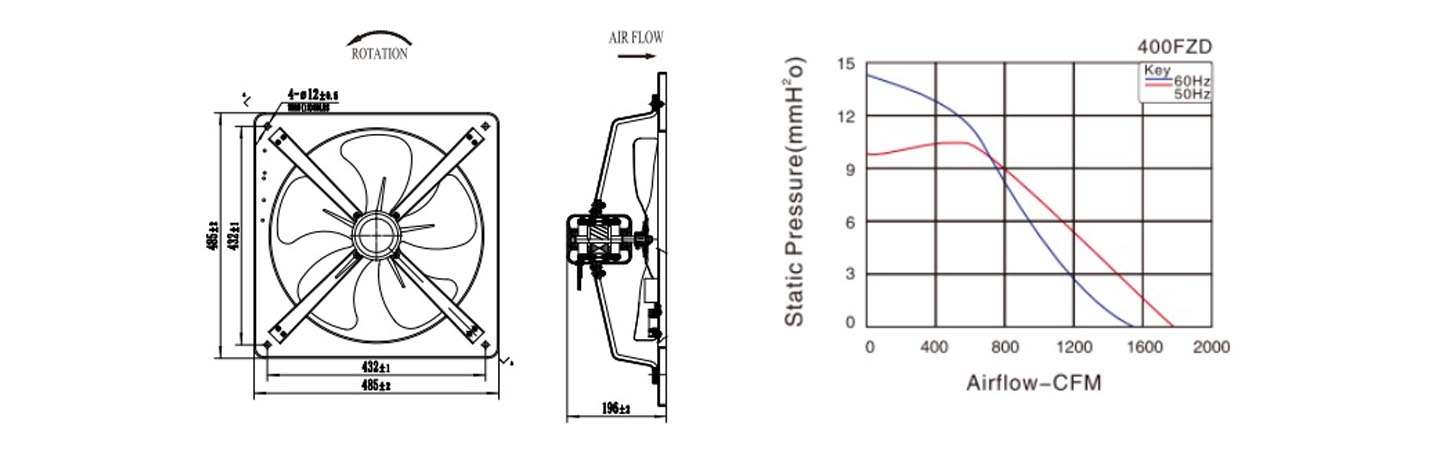

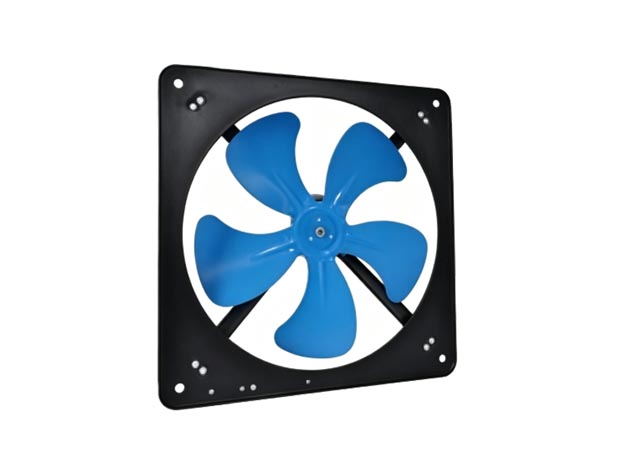

Item code: 400FZD External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type
| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 400FZD2 | Ball | 200/240 | 50/60 | 0.45/0.58 | 100/130 | 1400/1560 | 70/73 | 1550/1725 | 1 | 3.5/500 |
| 400FZD3 | Ball | 200/420 | 50/60 | 0.5 | 150 | 1400/1560 | 70/73 | 1550/1725 | 3 | / |
| 400FZD4 | Ball | 380/420 | 50/60 | 0.6/0.85 | 115/175 | 1400/1560 | 70/73 | 1550/1725 | 1 | 3/500 |
