| Size： | 400mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

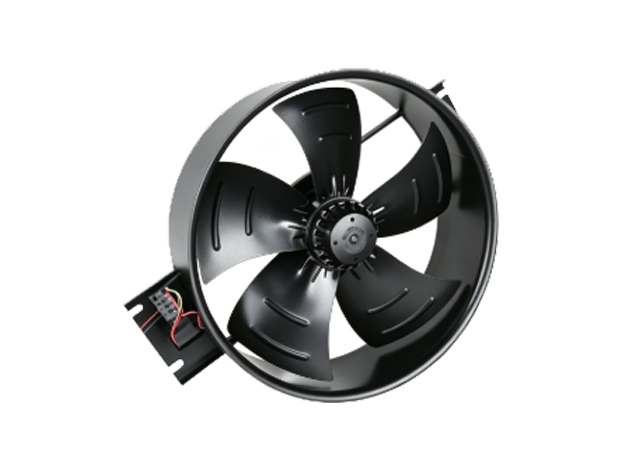

Item code: 400FZY-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type

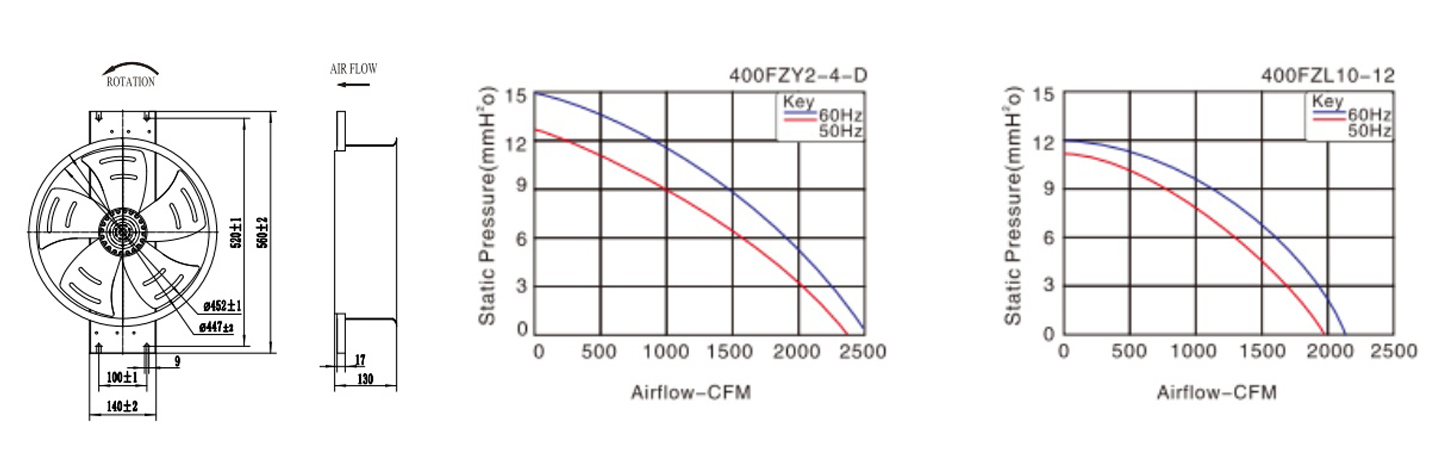

| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 400FZY2-D | Ball | 200/240 | 50/60 | 0.80 | 180 | 1400/1560 | 68/70 | 2400/2589 | 1 | 6/500 |
| 400FZY3-D | Ball | 380/420 | 50/60 | 0.40 | 180 | 1400/1560 | 68/70 | 2400/2589 | 3 | / |
| 400FZY4-D | Ball | 380/420 | 50/60 | 0.45 | 180 | 1400/1560 | 68/70 | 2400/2589 | 1 | 3/500 |
| 400FZY6-D | Ball | 200/240 | 50/60 | 0.50 | 112 | 950/1050 | 58/61 | 1977/2130 | 1 | 4/500 |
| 400FZY7-D | Ball | 380/420 | 50/60 | 0.35 | 112 | 950/1050 | 58/61 | 1977/2130 | 3 | / |
| 400FZY8-D | Ball | 380/420 | 50/60 | 0.40 | 112 | 950/1050 | 58/61 | 1977/2130 | 1 | 2.2/500 |
