| Size： | 450mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

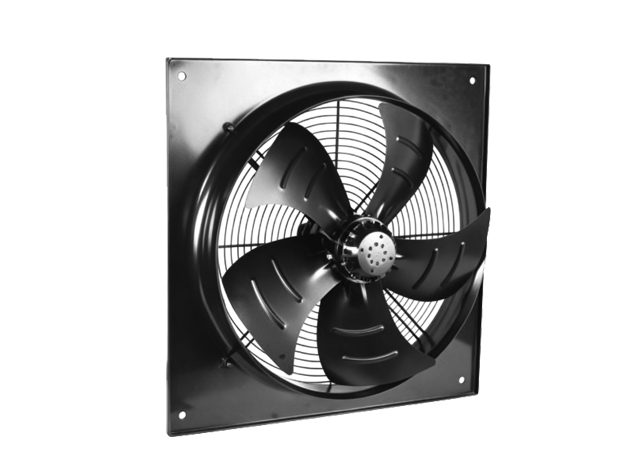

Item code: 450FZL-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type
| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 450FZL2-D | Ball | 200/240 | 50/60 | 1.15 | 250 | 1300/1450 | 70/73 | 3154/3413 | 1 | 8/500 |
| 450FZL3-D | Ball | 380/420 | 50/60 | 0.52 | 250 | 1300/1450 | 70/73 | 3154/3413 | 3 | / |
| 450FZY4-D | Ball | 380/420 | 50/60 | 0.60 | 250 | 1300/1450 | 70/73 | 3154/3413 | 1 | 4/500 |
| 450FZY6-D | Ball | 200/240 | 50/60 | 0.71 | 160 | 920/1040 | 59/62 | 2624/2813 | 1 | 6/500 |
| 450FZY7-D | Ball | 380/420 | 50/60 | 0.40 | 160 | 920/1040 | 59/62 | 2624/2813 | 3 | / |
| 450FZY8-D | Ball | 380/420 | 50/60 | 0.45 | 160 | 920/1040 | 59/62 | 2624/2813 | 1 | 3/500 |
