| Size： | 600mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

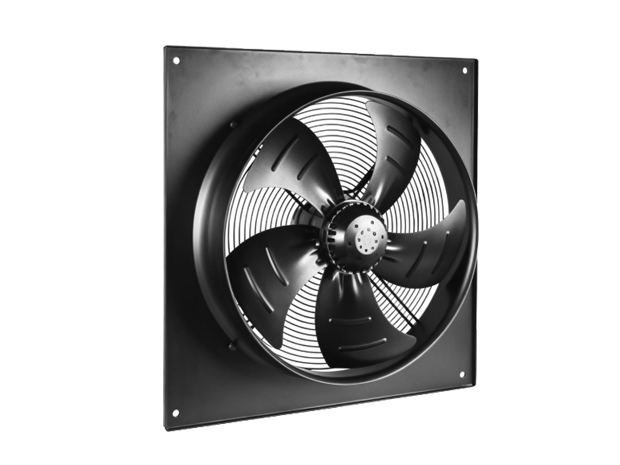

Item code: 600FZL-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type

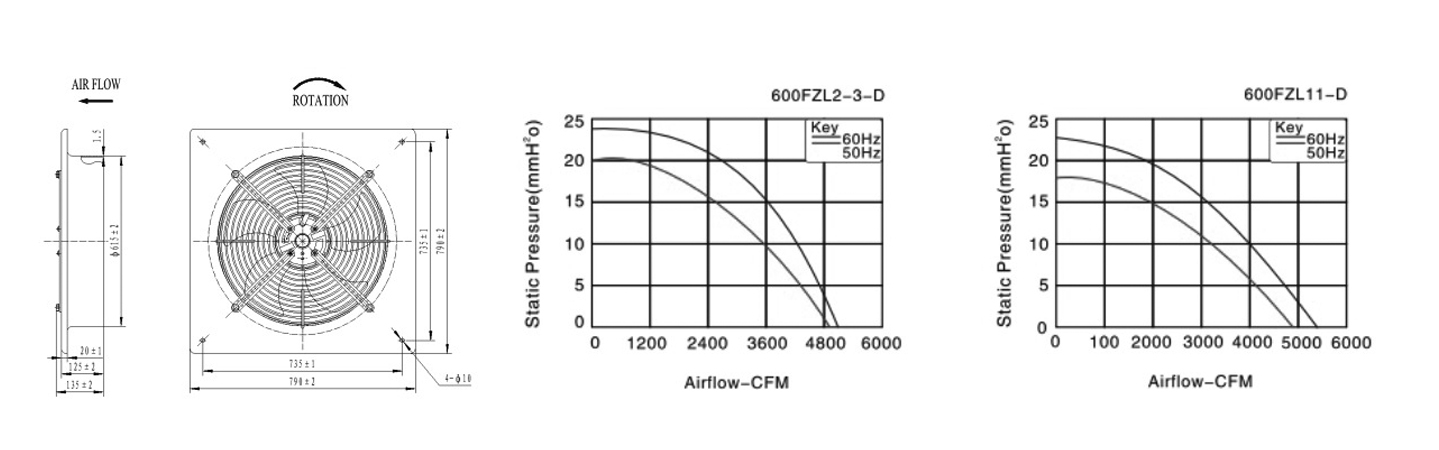

| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 600FZL10-D | Ball | 200/240 | 50/60 | 2.4 | 520 | 900/950 | 70/78 | 4825/5327 | 1 | 10/500 |
| 600FZL11-D | Ball | 380/420 | 50/60 | 1.4 | 520 | 900/950 | 70/78 | 4825/5327 | 3 | / |
| 600FZL4-D | Ball | 380/420 | 50/60 | 1.6 | 520 | 1300/1400 | 73/80 | 4925/5437 | 3 | / |
