| Size： | 630mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

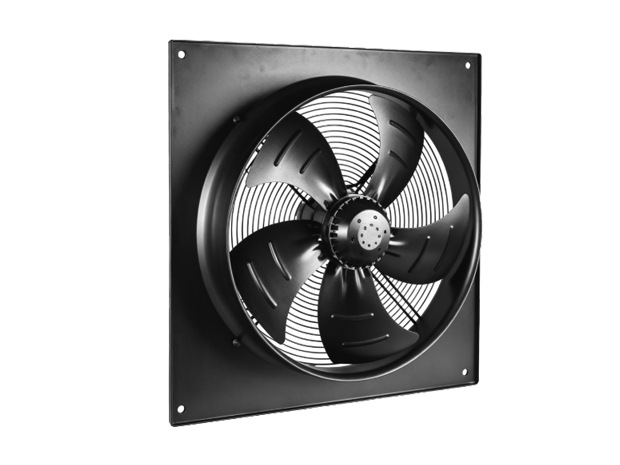

Item code: 630FZL-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type
| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Phase | CapacitorμF/VAC |
| 630FZL2-D | Ball | 200/240 | 50/60 | 4.5/3.0 | 920/680 | 1300/1500 | 75/79 | 11000/13500 | 1 | 12/500 |
| 630FZL3-D | Ball | 380/420 | 50/60 | 1.8/1.8 | 800/850 | 1300/1480 | 75/79 | 13000/14000 | 3 | / |
| 630FZL10-D | Ball | 200/240 | 50/60 | 1.45/1.8 | 360/420 | 900/1100 | 70/73 | 9500/12800 | 1 | 8/500 |
| 630FZL11-D | Ball | 380/420 | 50/60 | 1.3/1.2 | 400/460 | 900/1100 | 70/73 | 9500/12000 | 3 | / |
| 630FZL13-D | Ball | 200/240 | 50/60 | 1.5/1.6 | 250/300 | 700/720 | 60/65 | 9000/9600 | 1 | 5/500 |
