| Size： | 800mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |

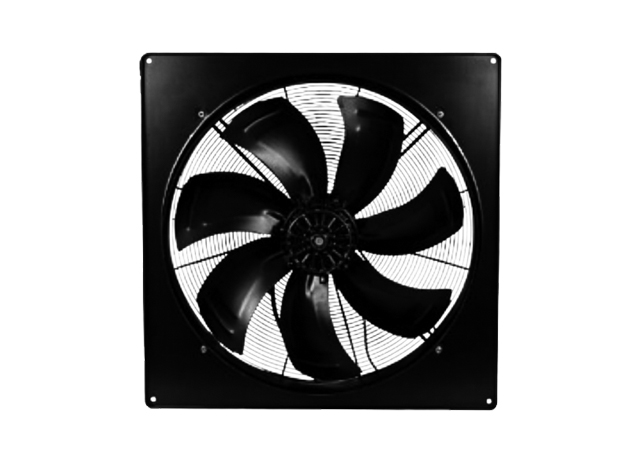

Item code: 800FZL-D External rotor fan
Housing: Iron, Painted Black
Impeller: Steel, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -30℃ to +60℃ for Ball Type

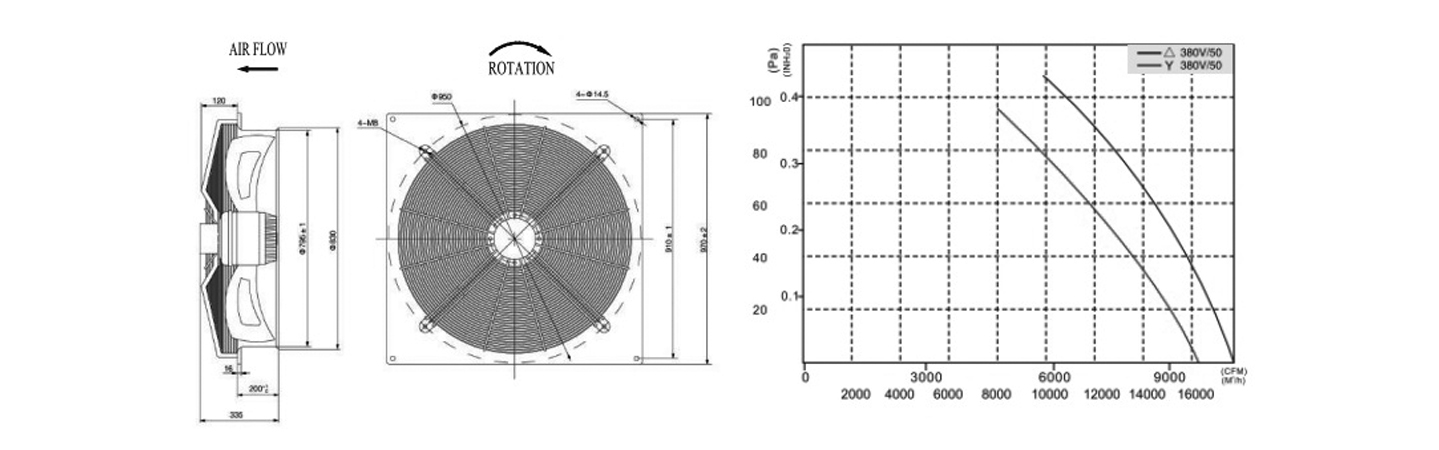

| Model | Bearing System | Voltage VAC | Freq Hz | Current A | Power W | Speed RPM | Noise dBA | Air Flow CFM | Connection way |
| 800FZL12-D | Ball | 380 | 50 | 2.85/1.6 | 1200/930 | 920/770 | 82 | 11802/9476 | △/Y |
