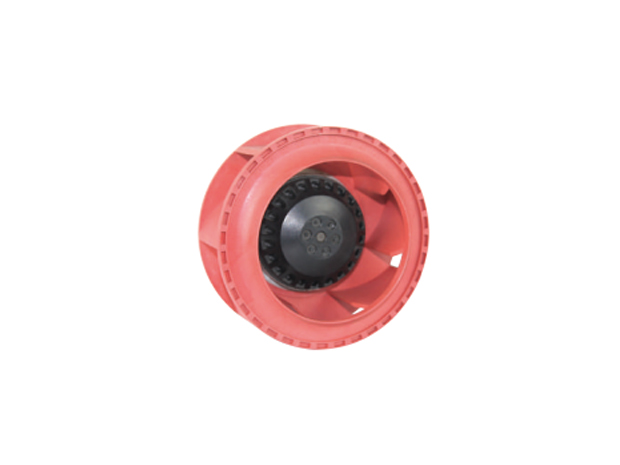

AC Centrifugal Fan :Φ133x61mm

Technical characteristics
  • Size:Φ133x61mm
  • Weight:800g
  • Impeller Material:PA66
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

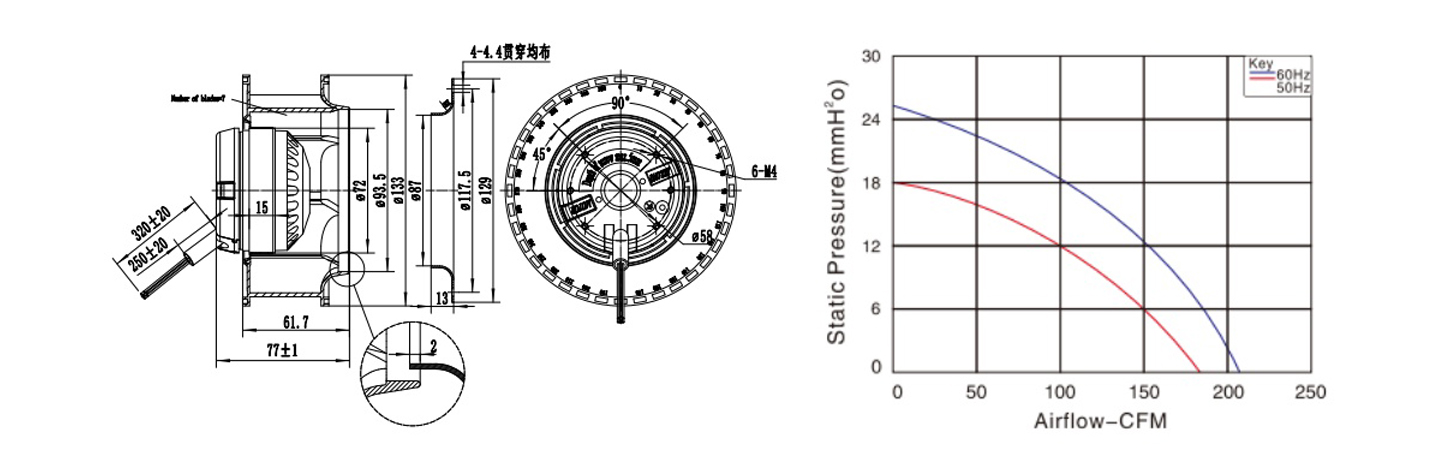

图表4
Performance Parameter
Model Voltage   VAC Freq            Hz Current      A Power          W Speed     RPM Noise       dBA Capacitor μF/VAC Air Flow   CFM
133FLW-B2E01 115 50/60 0.34/0.3 35/33 2600/3100 51/56 3.3/500 1171/203
133FLW-B2E02 230 50/60 0.15/0.13 33/30 2600/3100 51/56 1/500 171/203
