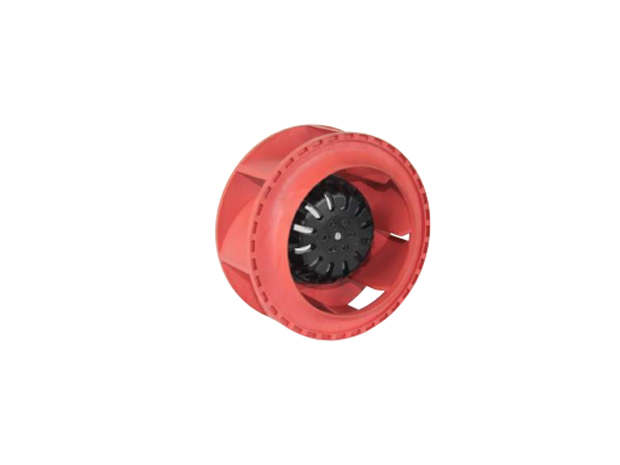

AC Centrifugal Fan :Φ133x61mm

Technical characteristics
  • Size:Φ133x61mm
  • Weight:800g
  • Impeller Material:PA66
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP22
  • Insulation class:"F"

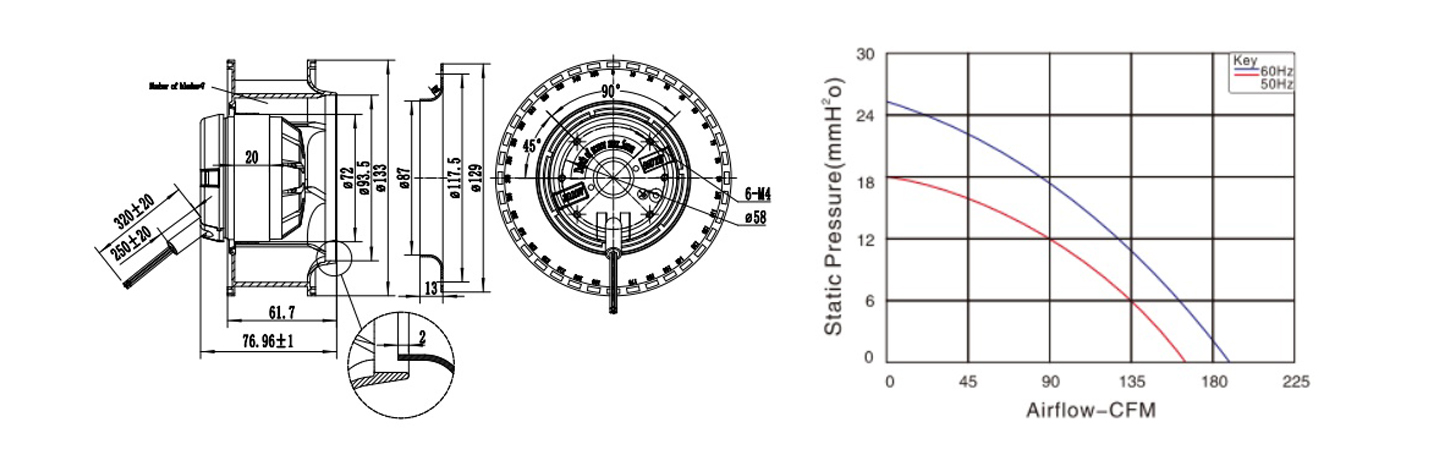

图表3
Performance Parameter
Model Voltage   VAC Freq            Hz Current      A Power          W Speed     RPM Noise       dBA Capacitor μF/VAC Air Flow   CFM
133FLW-A2E01 115 50/60 0.55/0.48 42/40 2750/3000 54/57 / 165/188
133FLW-A2E02 230 50/60 0.3/0.26 42/40 2750/3000 54/57 / 165/188
