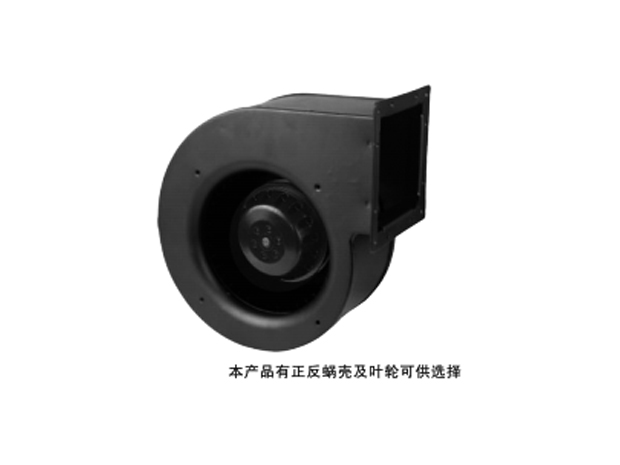

AC Centrifugal Fan :Φ150x72mm

Technical characteristics
  • Size:Φ150x72mm
  • Weight:3300g
  • Impeller Material:metal
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

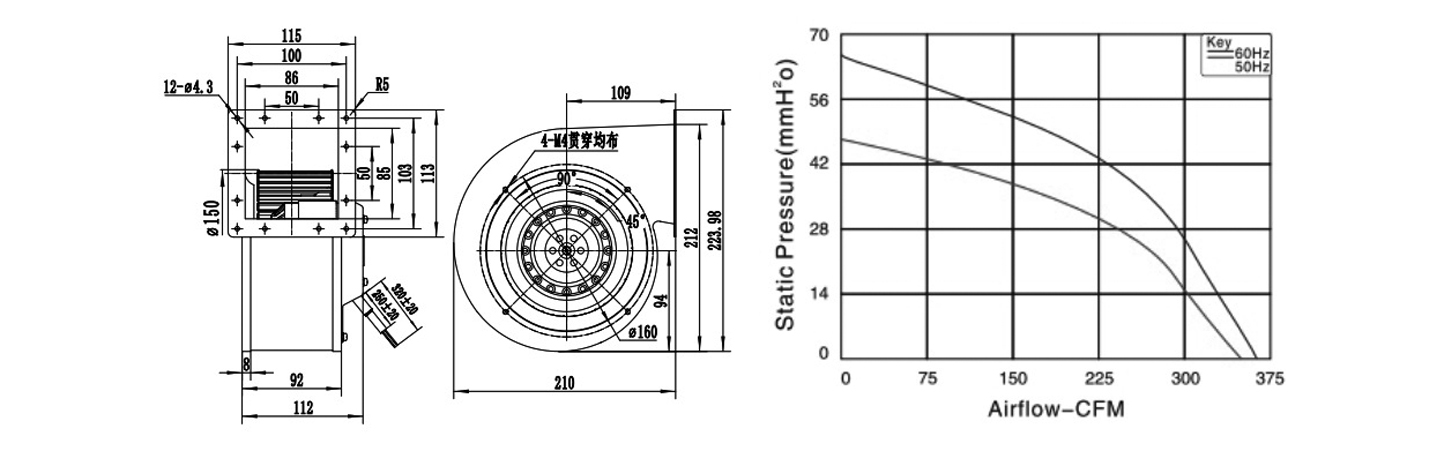

图表
Performance Parameter
Model Voltage     VAC Freq             Hz Current      A Power            W Speed        RPM Noise         dBA Capacitor μF/VAC Air Flow      CFM
150FLJ-A2E01W 115 50/60 1.68/2.0 180/220 2400/25200 68/70 20/250 335/350
150FLJ-A2E02W 230 50/60 0.68/0.9 150/220 2400/25200 68/70 4/500 335/350
150FLJ-A2E03W 380 50/60 1.1/1.2 132/246 2400/25200 68/70 4/500 335/350
