AC Centrifugal Fan :Φ160x61mm

Technical characteristics
  • Size:Φ160x61mm
  • Weight:3500g
  • Impeller Material:metal
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

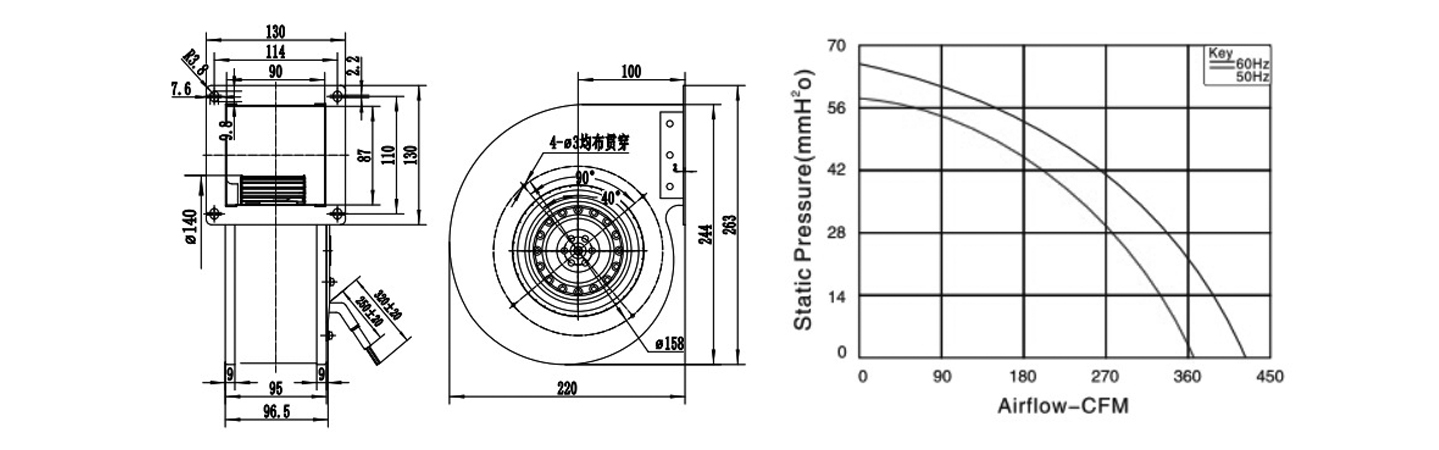

图表
Performance Parameter
Model Voltage     VAC Freq              Hz Current      A Power            W Speed       RPM Noise         dBA Capacitor μF/VAC Air Flow    CFM
160FLJ-A2E01W 115 50/60 1.3/1.57 170/207 1800/2200 56/68 20/250 363/424
160FLJ-A2E02W 230 50/60 0.63/0.73 130/175 1800/2200 56/68 4/630 363/424
