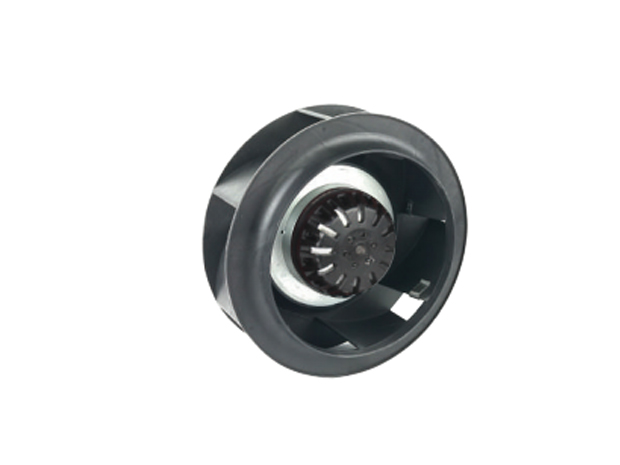

AC Centrifugal Fan :Φ175x61mm

Technical characteristics
  • Size:Φ175x61mm
  • Weight:1000g
  • Impeller Material:PA66
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP420
  • Insulation class:"F"

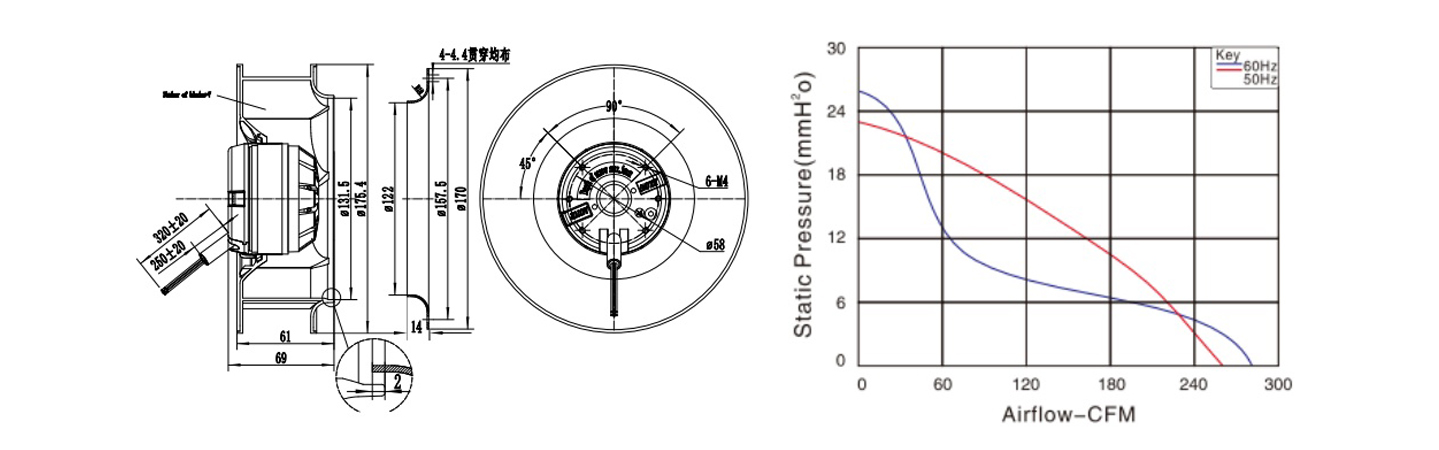

图表
Performance Parameter
Model Voltage   VAC Freq            Hz Current      A Power          W Speed     RPM Noise       dBA Capacitor μF/VAC Air Flow   CFM
175FLW-A2E01 115 50/60 0.6/0.5 55/53 2400/2350 60/59 / 259/269
175FLW-A2E02 230 50/60 0.36/0.42 55/53 2400/2350 60/59 / 259/269
