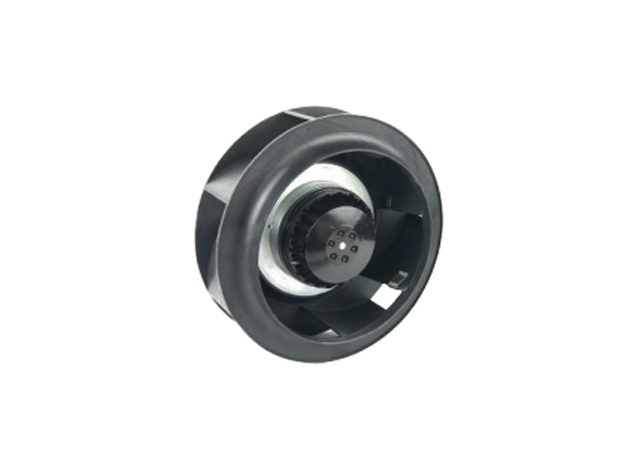

AC Centrifugal Fan :Φ175x65mm

Technical characteristics
  • Size:Φ175x65mm
  • Weight:1000g
  • Impeller Material:PA66
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

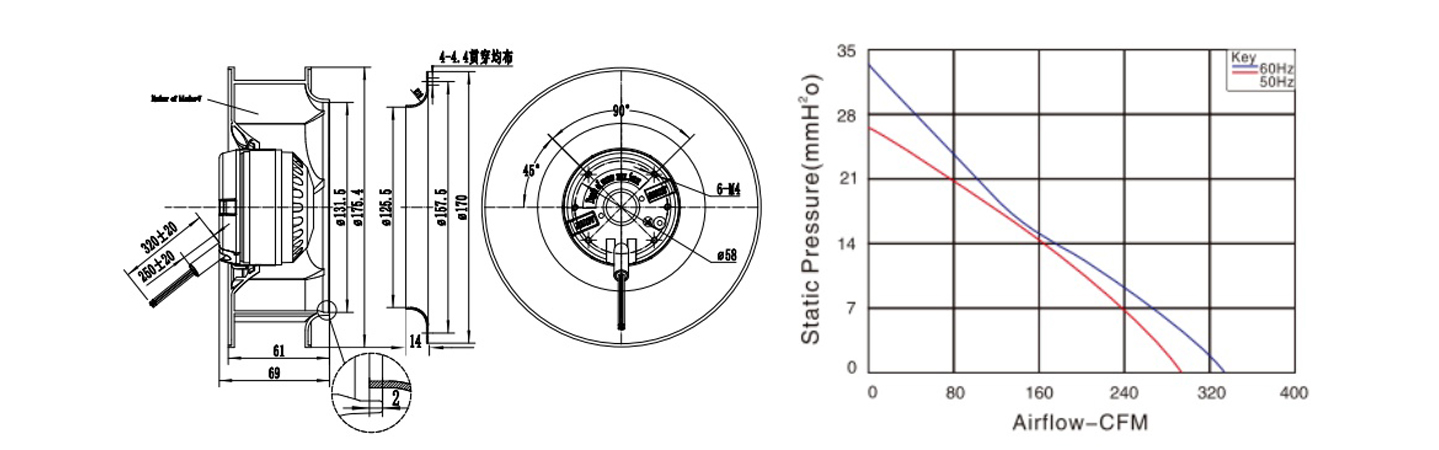

图表2
Performance Parameter
Model Voltage   VAC Freq            Hz Current      A Power          W Speed     RPM Noise       dBA Capacitor μF/VAC Air Flow   CFM
175FLW-B2E01 115 50/60 0.3/0.37 40/60 2750/3100 63/68 3.3/500 288/335
175FLW-B2E02 230 50/60 0.17/0.23 39/52 2750/3100 63/68 1.5/500 270/312
