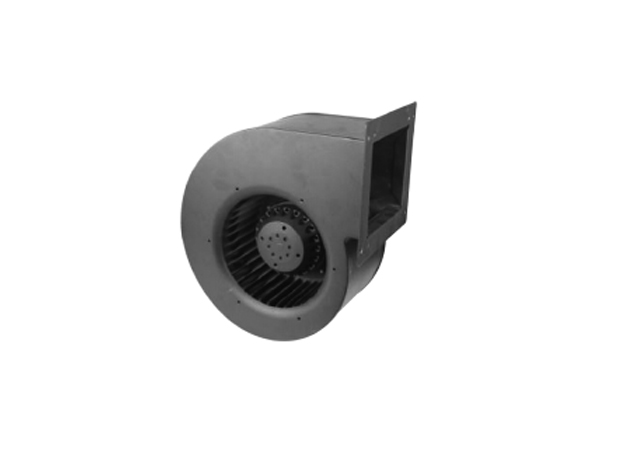

AC Centrifugal Fan :Φ180x92mm

Technical characteristics
  • Size:Φ180x92mm
  • Weight:5100g
  • Impeller Material:metal
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

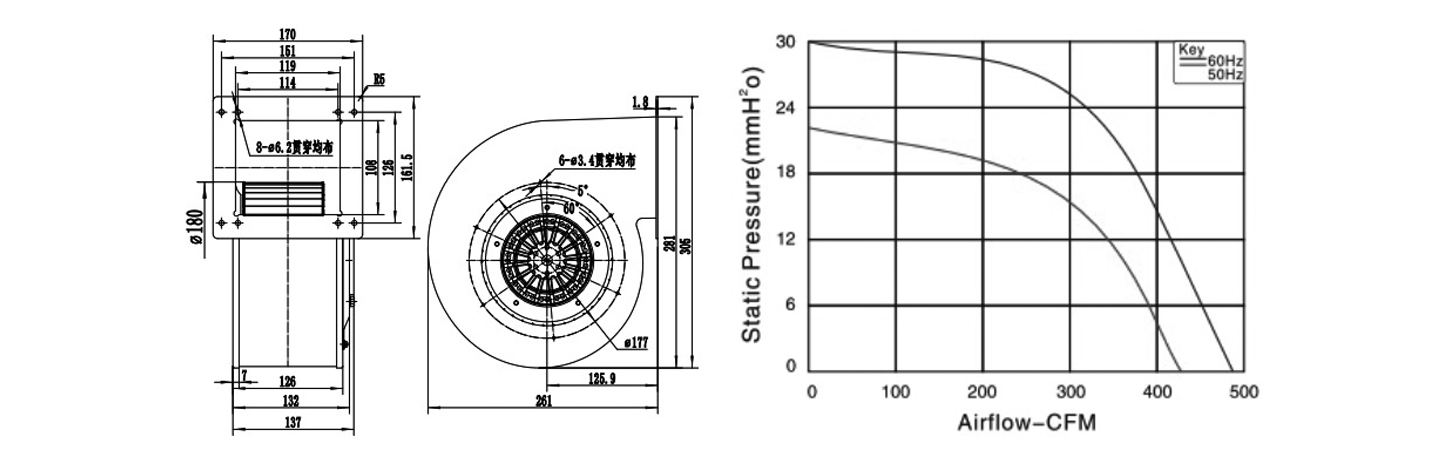

图表
Performance Parameter
Model Voltage    VAC Freq           Hz Current      A Power         W Speed    RPM Noise     dBA Capacitor μF/VAC Air Flow CFM
180FLJ-A4E01 115 50/60 1.7/1.4 130/160 1350/1550 65/67 20/450 426/471
180FLJ-A4E02 230 50/60 0.6/0.9 135/180 1350/1550 65/67 5/500 426/471
180FLJ-A4E03 380 50 0.3/0.25 135/155 1350/1550 65/67 / 426/471
