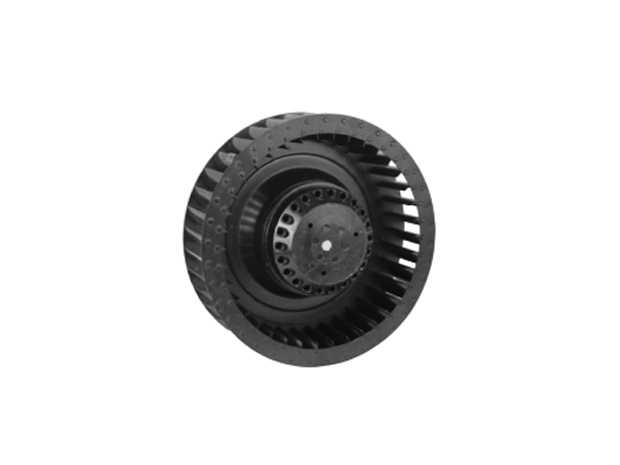

AC Centrifugal Fan :Φ200×4/81/104mm

Technical characteristics
  • Size:Φ200x54/81/104mm
  • Weight:2500g
  • Impeller Material:metal
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"
图表
Performance Parameter
Model Voltage     VAC Freq              Hz Current      A Power            W Speed       RPM Noise         dBA Capacitor μF/VAC Air Flow    CFM
200FLW-A4E01 115 50/60 0.9/1.1 110/120 1300/1500 58/62 20/250 589/648
200FLW-A4E02 230 50/60 0.4/0.5 85/100 1300/1500 58/62 4/630 589/648
200FLW-B4E01 115 60 0.9 110 1300 53 20/250 719
200FLW-B4E02 230 50/60 0.5/0.65 110/120 1300/1500 53/57 4/630 719/795
