AC Centrifugal Fan :Φ200×54/81/104mm

Technical characteristics
  • Size:Φ200x54/81/104mm
  • Weight:2500g
  • Impeller Material:metal
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

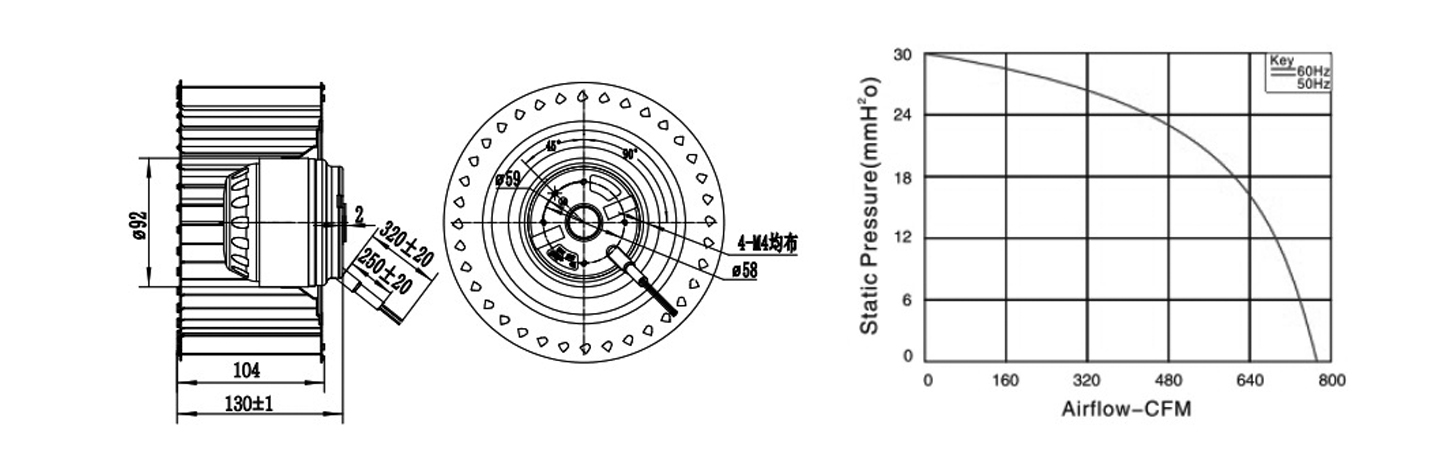

图表2
Performance Parameter
Model Voltage    VAC Freq            Hz Current      A Power          W Speed     RPM Noise       dBA Capacitor μF/VAC Air Flow  CFM
200FLW-C4E02 230 50 0.9 190 1350 53 5/630 795
200FLW-C4E06 380 50 0.5 190 1350 53 / 795
