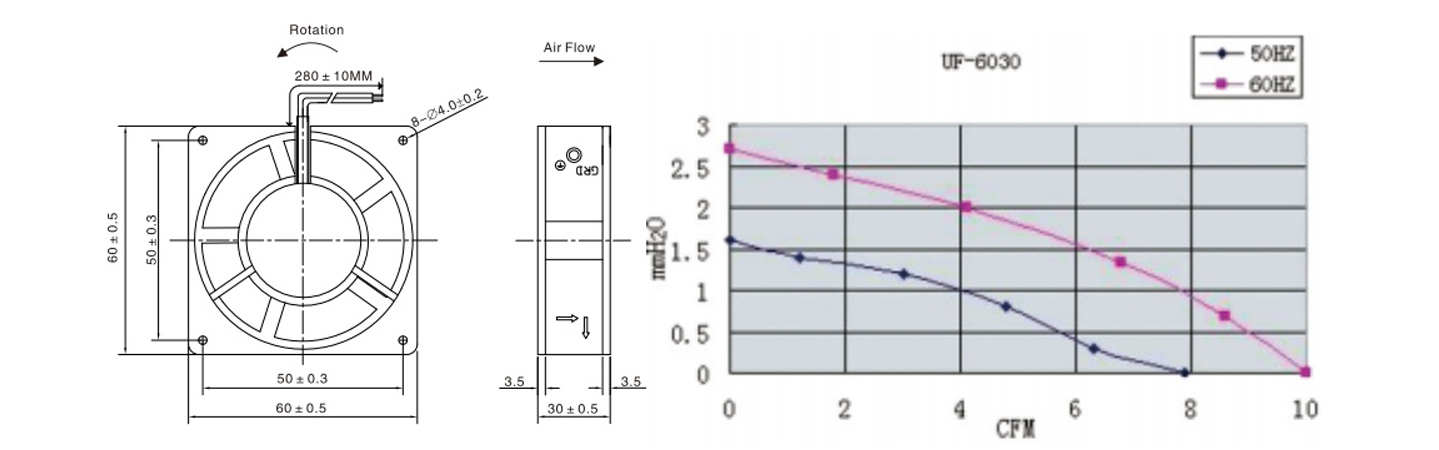

| Size： | 60*60*30mm |
| Motor wires: | 100% pure copper motor wires |

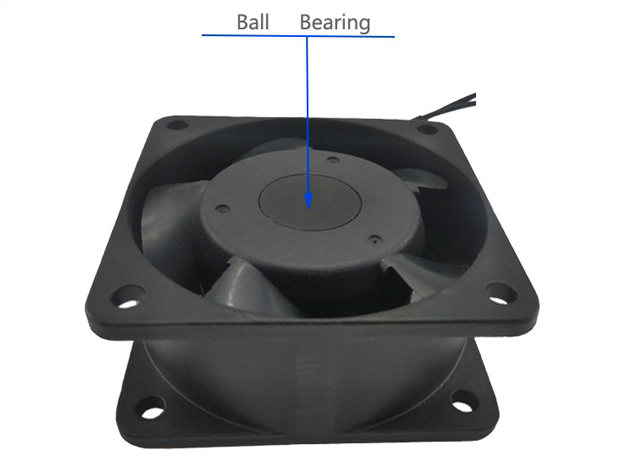

| Bearing: | Ball |
| Weight: | 145g |
| Safety: | Impedance Protected |
Item code: AC 6030
Housing: Aluminum Alloy, Painted Black
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Bearing System | Rated Voltage | Frequency | Rated Current | Rated Input Power | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V AC | Hz | Amp | Watt | RPM | CFM | MmH2O | dBA | ||

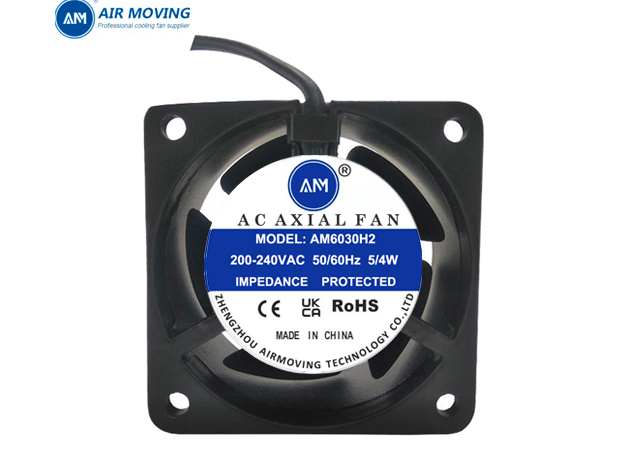

| AM6030H2 | Ball | 200-240 | 50/60 | 0.022/0.020 | 5/4 | 2500/3000 | 7.9/10.0 | 1.6/2.7 | 26/27 |
| AM6030H1 | Ball | 110-120 | 50/60 | 0.042/0.035 | 5/4 | 2500/3000 | 7.9/10.0 | 1.6/2.7 | 26/27 |
