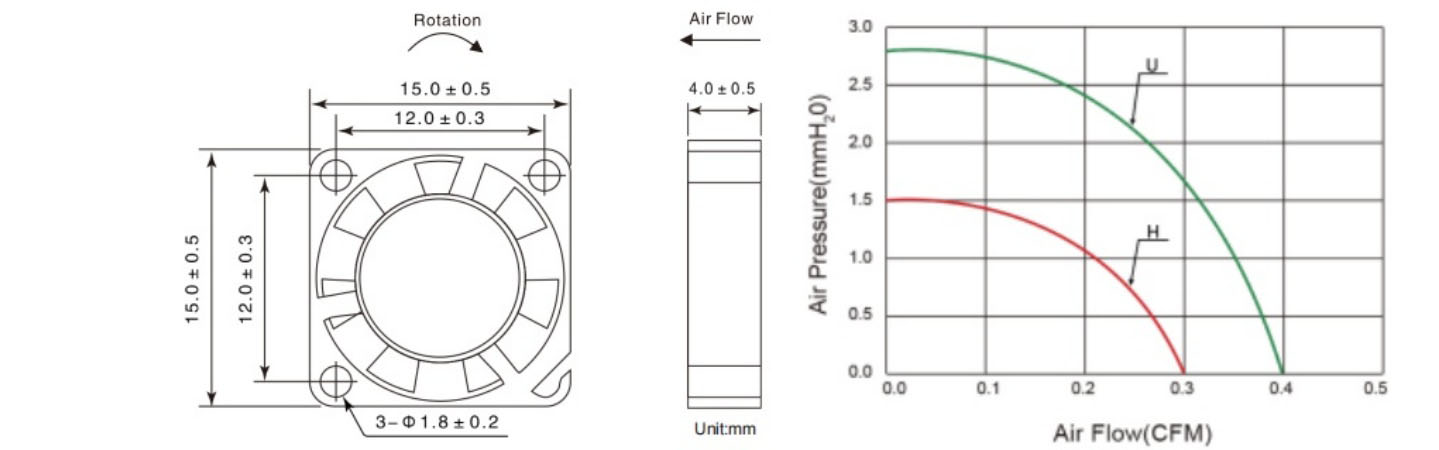

| Size: | 15*15*4mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 2g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC1504
Housing: Thermoplastic PBT,UL94V-0
Impeller: Thermoplastic PBT,UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| 3.3 | 2.5-3.5 | |||||||

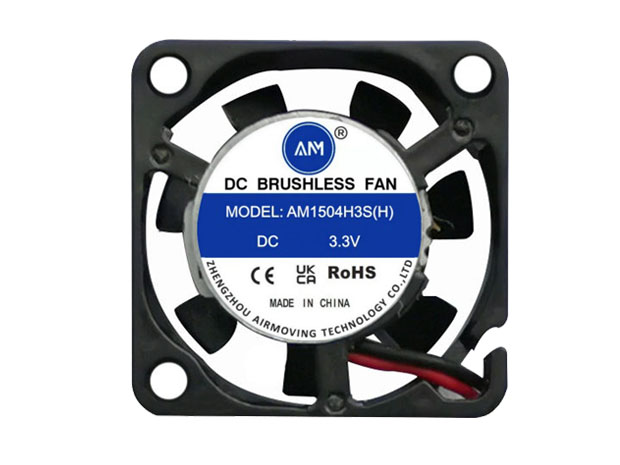

| AM1504H3S(H) | 0.099 | 0.03 | 10000 | 0.3 | 1.5 | 25 | ||
| 5 | 4.5-5.5 | |||||||
| AM1504U5S(H) | 0.2 | 0.04 | 16000 | 0.4 | 2.8 | 30 | ||
