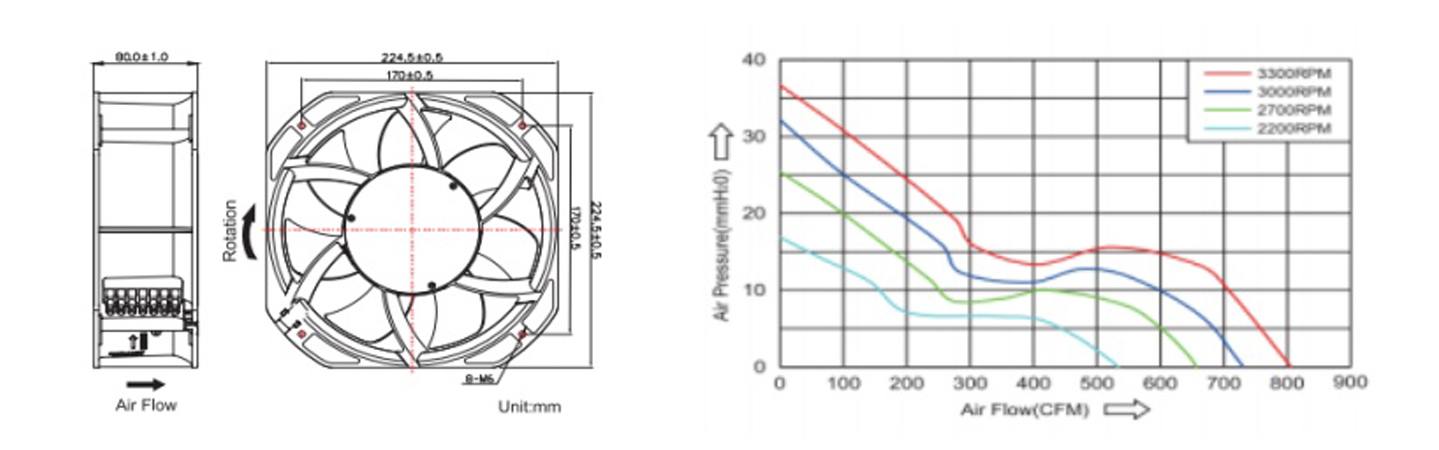

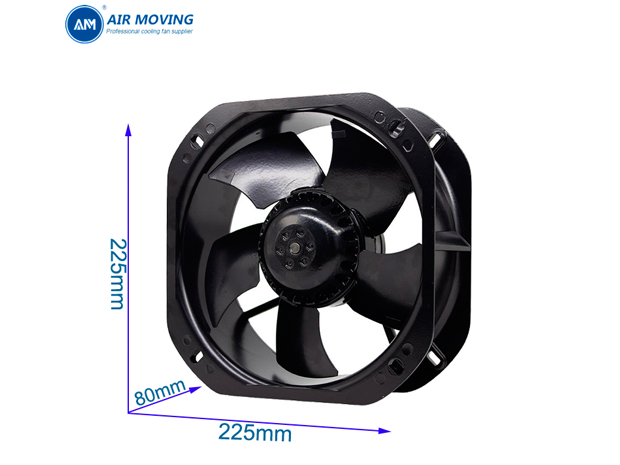

| Size: | 225*225*80mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball |
| Weight: | 205g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC 22580
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |

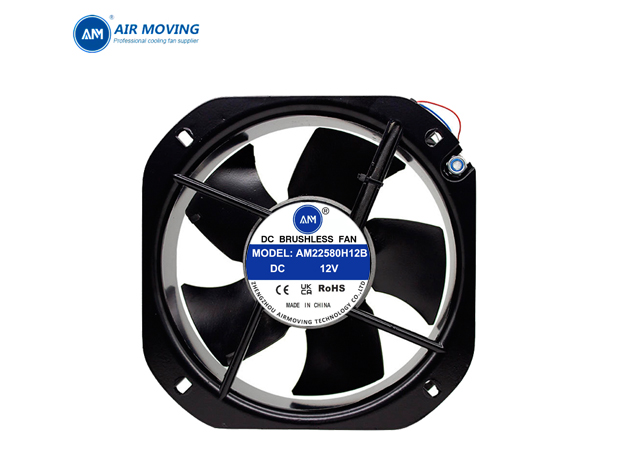

| AM22580H12B | 12.0 | 6.0-13.8 | 96.0 | 8.0 | 3000 | 754.1 | 26.2 | 69.5 |
| AM22580H24B | 24.0 | 12.0-27.0 | 96.0 | 4.0 | 3200 | 804.4 | 29.8 | 71.0 |
| AM22580M24B | 48.0 | 2.0 | 2700 | 678.7 | 21.3 | 66.9 | ||
| AM22580L24B | 19.2 | 0.8 | 2200 | 553.0 | 14.1 | 62.0 | ||
| AM22580H48B | 48.0 | 24.0-56.0 | 96.0 | 2.0 | 3200 | 804.4 | 29.8 | 71.0 |
| AM22580M48B | 48.0 | 1.0 | 2700 | 678.7 | 21.3 | 66.9 | ||
| AM22580L48B | 48.0 | 0.6 | 2200 | 553.0 | 14.1 | 62.0 |
