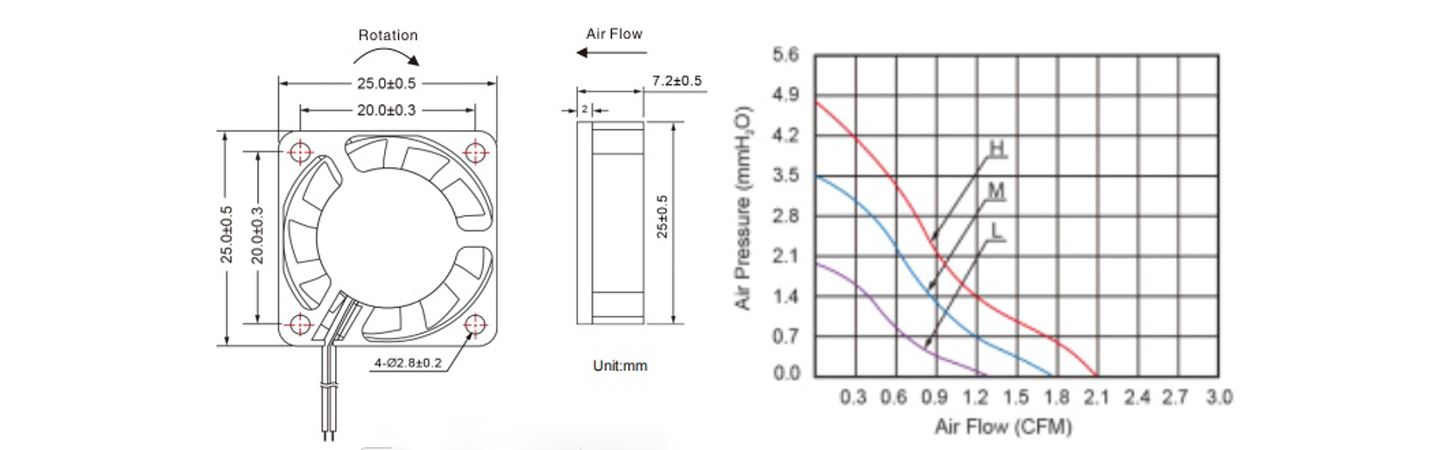

| Size: | 25*25*7mm |
| Motor: | DC brushless fan motor |
| Bearing: | Sleeve |
| Weight: | 4.5g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Polarity protection. | |
| 3.Waterproof Level |
Item code: DC2507
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM2507L5S | 5.0 | 3.0-5.5 | 0.45 | 0.09 | 8000 | 1.30 | 1.80 | 21 |
| AM2507M5S | 0.50 | 0.10 | 10000 | 1.70 | 3.50 | 25 | ||
| AM2507H5S | 0.75 | 0.15 | 12000 | 2.10 | 4.80 | 30 | ||
| AM2507L12S | 12.0 | 6.0-13.8 | 0.48 | 0.04 | 8000 | 1.60 | 1.80 | 21 |
| AM2507M12S | 0.84 | 0.07 | 10000 | 1.70 | 3.50 | 25 | ||
| AM2507H12S | 1.20 | 0.10 | 12000 | 2.10 | 4.80 | 30 |
