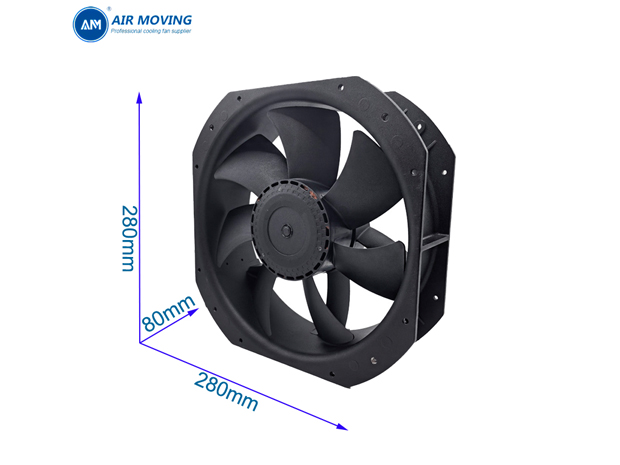

| Size: | 280*280*80mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball |
| Weight: | 168g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |

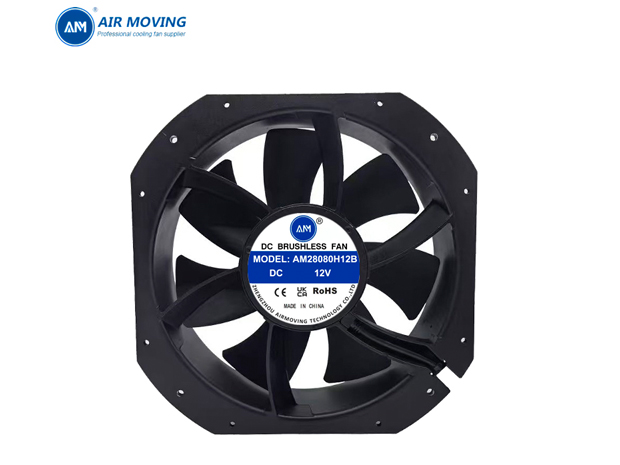

Item code: DC 28080
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM28080H12B | 12.0 | 6.0-13.8 | 96.0 | 8.0 | 2600 | 996.0 | 14.6 | 66.7 |
| AM28080H24B | 24.0 | 12.0-27.0 | 120.0 | 5.0 | 2800 | 1073.0 | 14.6 | 66.7 |
| AM28080M24B | 96.0 | 4.0 | 2600 | 996.0 | 10.5 | 63.0 | ||
| AM28080L24B | 72.0 | 3.0 | 2200 | 843.0 | 21.0 | 70.3 | ||
| AM28080H48B | 48.0 | 24.0-56.0 | 96.0 | 2.0 | 3000 | 1158.0 | 22.1 | 70.3 |
| AM28080M48B | 72.0 | 1.5 | 2800 | 1073.0 | 16.9 | 68.3 | ||
| AM28080L48B | 57.6 | 1.2 | 2600 | 966.0 | 14.6 | 66.7 |
