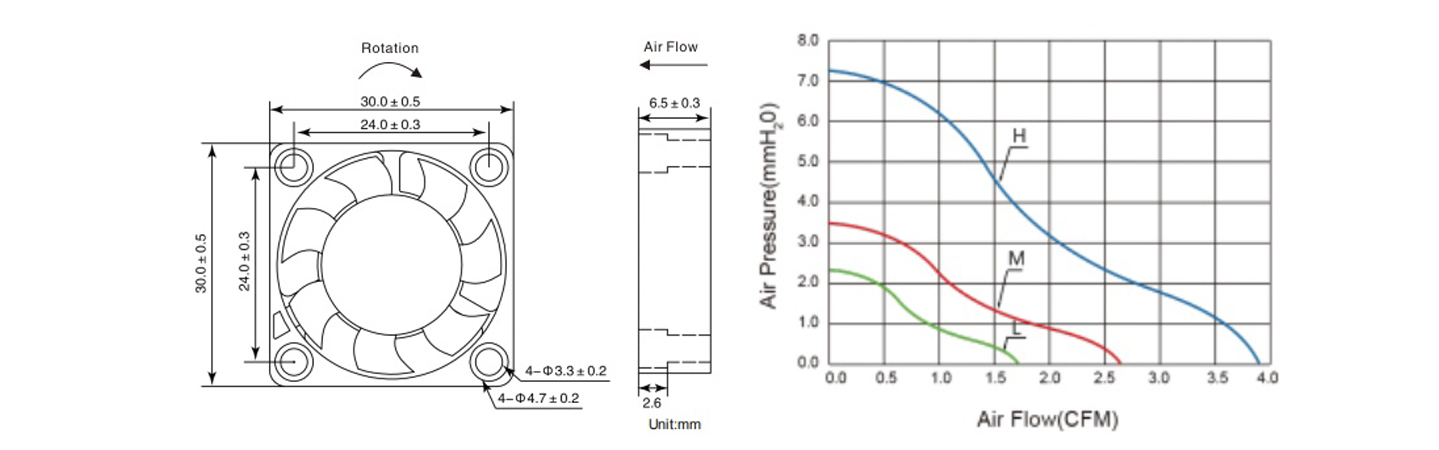

| Size: | 30*30*6mm |
| Motor: | DC brushless fan motor |
| Bearing: | Sleeve or Hydraulic |
| Weight: | 5.6g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Polarity protection. | |
| 3.Waterproof Level |
Item code: DC3006
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM3006L5S(H) | 5.0 | 3.0-5.5 | 0.55 | 0.11 | 5000 | 1.61 | 1.23 | 19.6 |
| AM3006M5S(H) | 0.80 | 0.16 | 8000 | 2.70 | 2.94 | 23.6 | ||
| 1.30 | 0.26 | 12000 | 4.25 | 6.39 | 33.6 | |||
| AM3006L12S(H) | 12.0 | 6.0-13.8 | 0.72 | 0.06 | 5000 | 1.61 | 1.23 | 19.6 |
| AM3006M12S(H) | 1.20 | 0.10 | 8000 | 2.70 | 2.94 | 23.8 | ||
| AM3006H12S(H) | 1.68 | 0.14 | 12000 | 4.25 | 6.39 | 33.6 |
