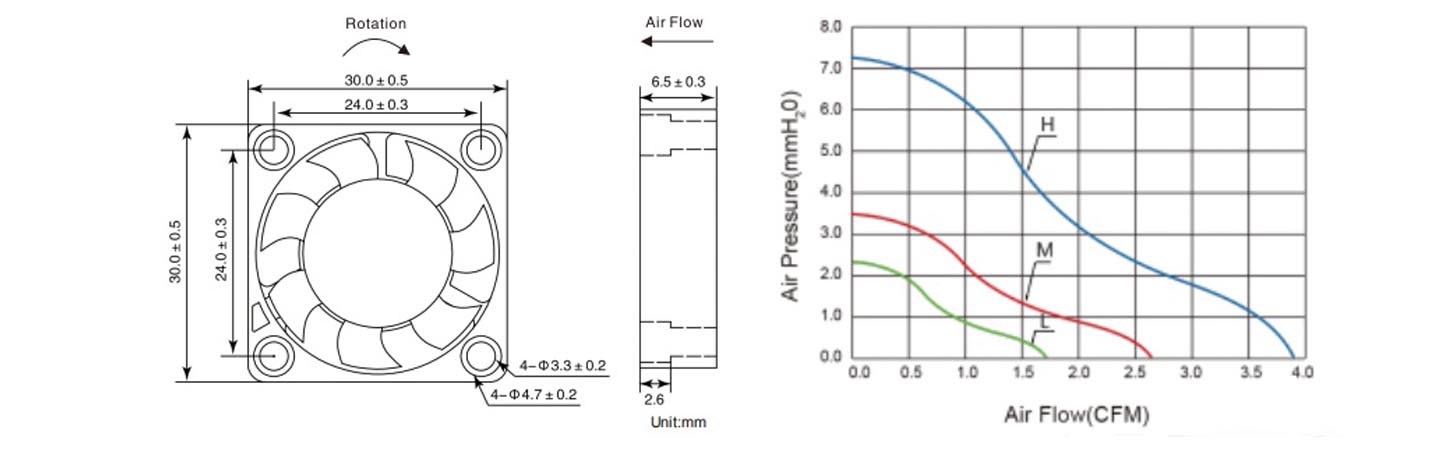

| Size: | 30*30*7mm |
| Motor: | DC brushless fan motor |
| Bearing: | Sleeve |
| Weight: | 7g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Polarity protection. | |
| 3.Waterproof Level |
Item code: DC3007
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM3007L5S | 5.0 | 3.0-5.5 | 0.65 | 0.13 | 7500 | 2.20 | 1.90 | 26 |
| AM3007M5S | 0.80 | 0.16 | 9000 | 2.90 | 2.80 | 30 | ||
| AM3007H5S | 1.20 | 0.24 | 10500 | 3.40 | 3.40 | 34 | ||
| AM3007L12S | 12.0 | 6.0-13.8 | 0.96 | 0.08 | 7500 | 2.20 | 1.90 | 26 |
| AM3007M12S | 1.20 | 0.10 | 9000 | 2.90 | 2.80 | 30 | ||
| AM3007H12S | 1.44 | 0.12 | 10500 | 3.40 | 3.40 | 34 |
