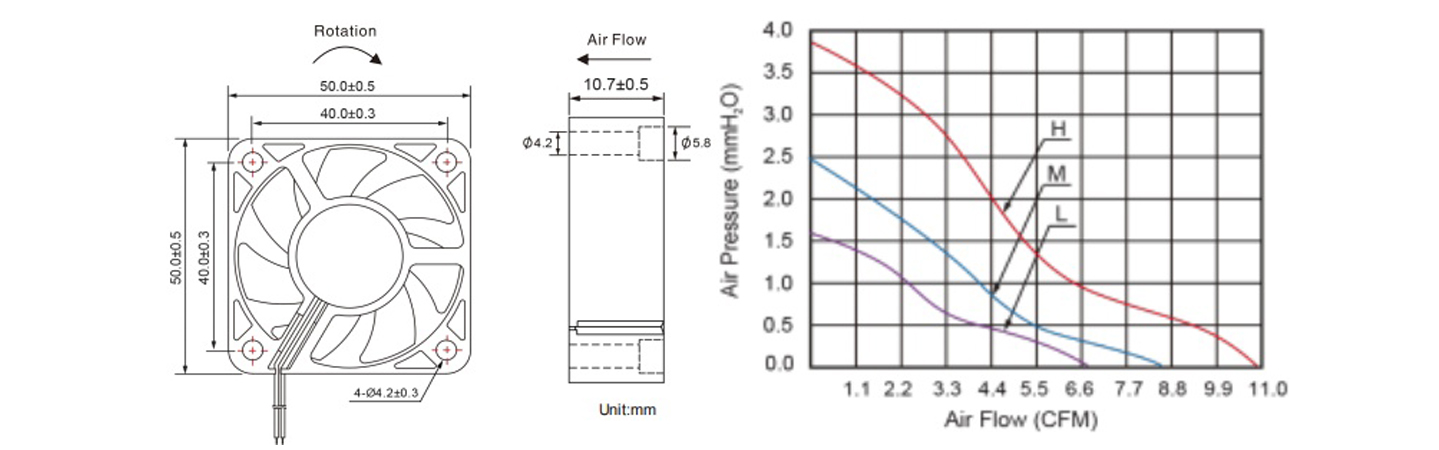

| Size: | 50*50*10mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 19g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |

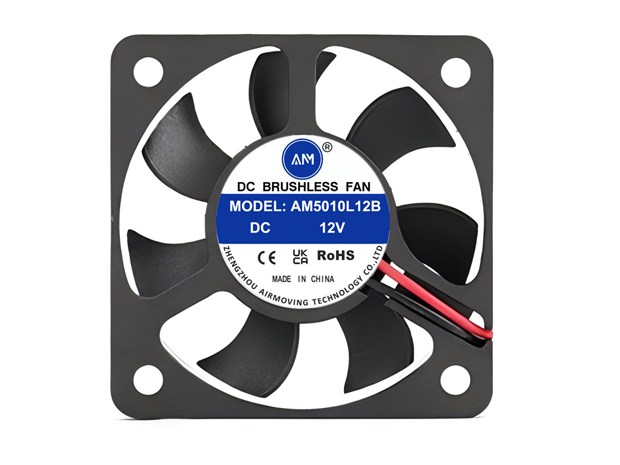

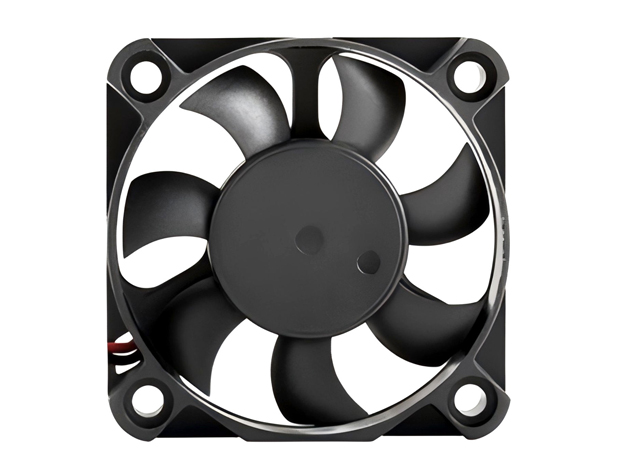

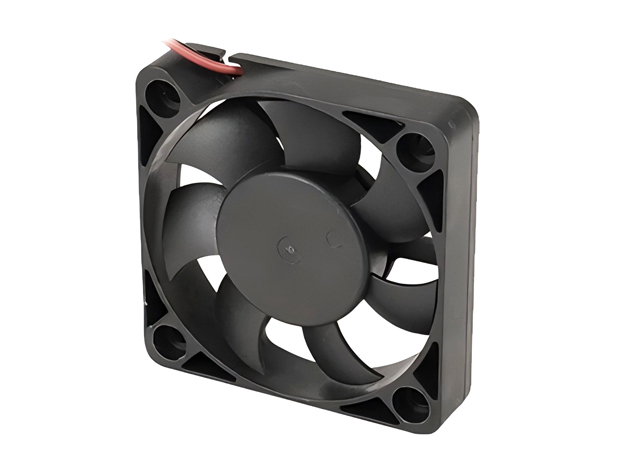

Item code: DC5010
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM5010L5B(S/H) | 5.0 | 3.0-5.5 | 0.08 | 4000 | 6.70 | 1.60 | 23.5 |
| AM5010M5B(S/H) | 0.10 | 5000 | 8.40 | 2.50 | 28.5 | ||
| AM5010H5B(S/H) | 0.12 | 6000 | 10.8 | 3.70 | 34.0 | ||
| AM5010L12B(S/H) | 12.0 | 6.0-13.8 | 0.03 | 4000 | 6.70 | 1.60 | 23.5 |
| AM5010M12B(S/H) | 0.04 | 5000 | 8.40 | 2.50 | 28.5 | ||
| AM5010H12B(S/H) | 0.09 | 6000 | 10.8 | 3.70 | 34.0 |
