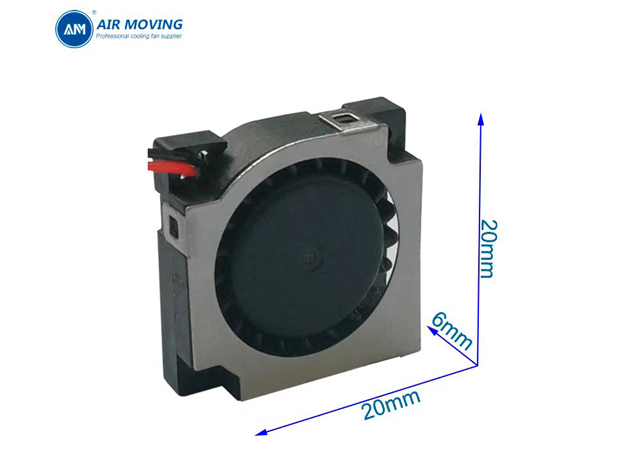

| Size: | 20*20*6mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 6g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

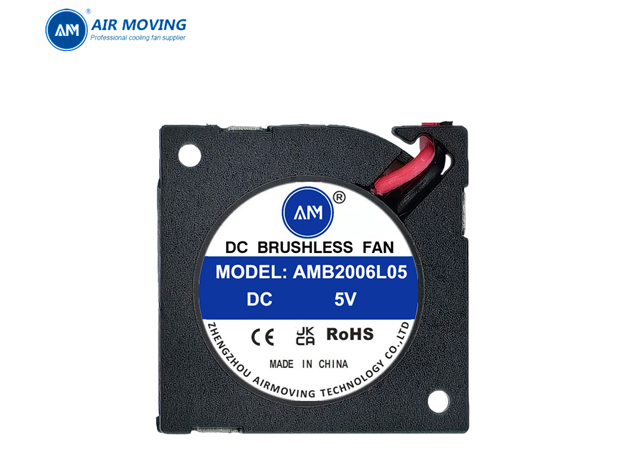

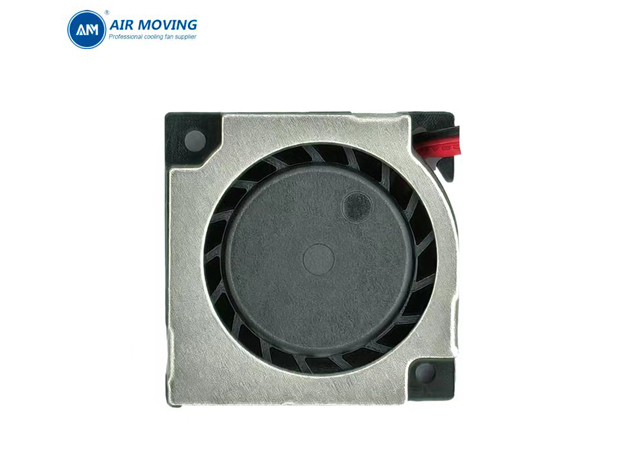

Item code: DC blower fan 2006
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#28
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type

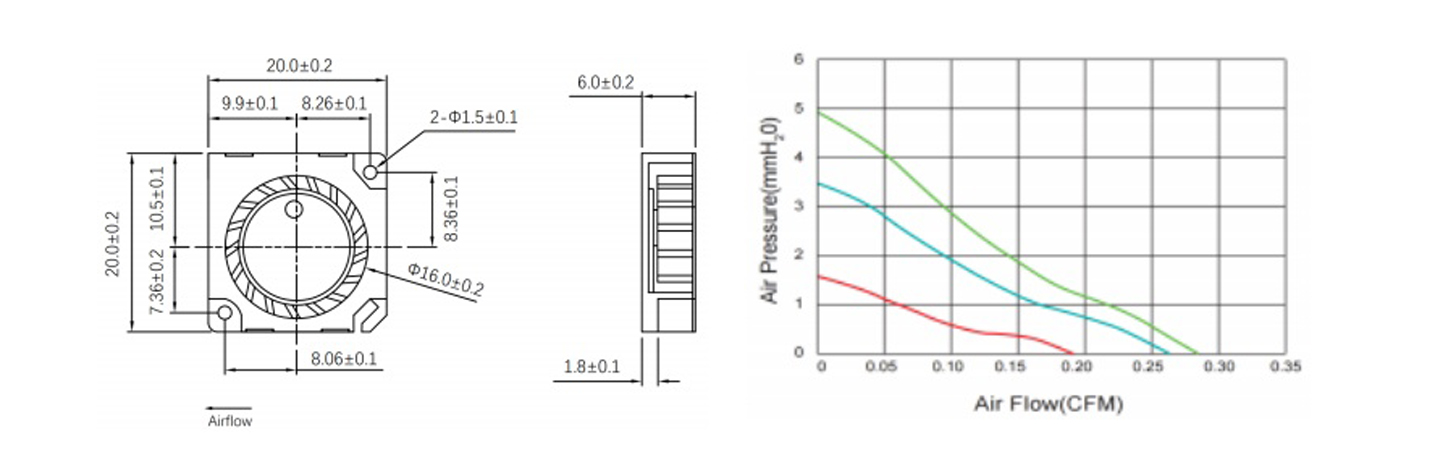

| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AMB2006L05B(S) | 5.0 | 3.0-5.5 | 0.75 | 0.15 | 9000 | 0.18 | 1.58 | 20.5 |
| AMB2006M05B(S) | 0.85 | 0.17 | 12000 | 0.26 | 3.36 | 26.1 | ||
| AMB2006H05B(S) | 0.90 | 0.18 | 15000 | 0.27 | 4.96 | 32.4 |
