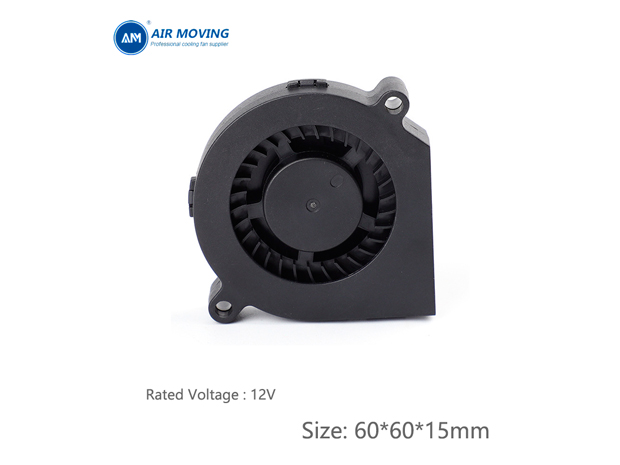

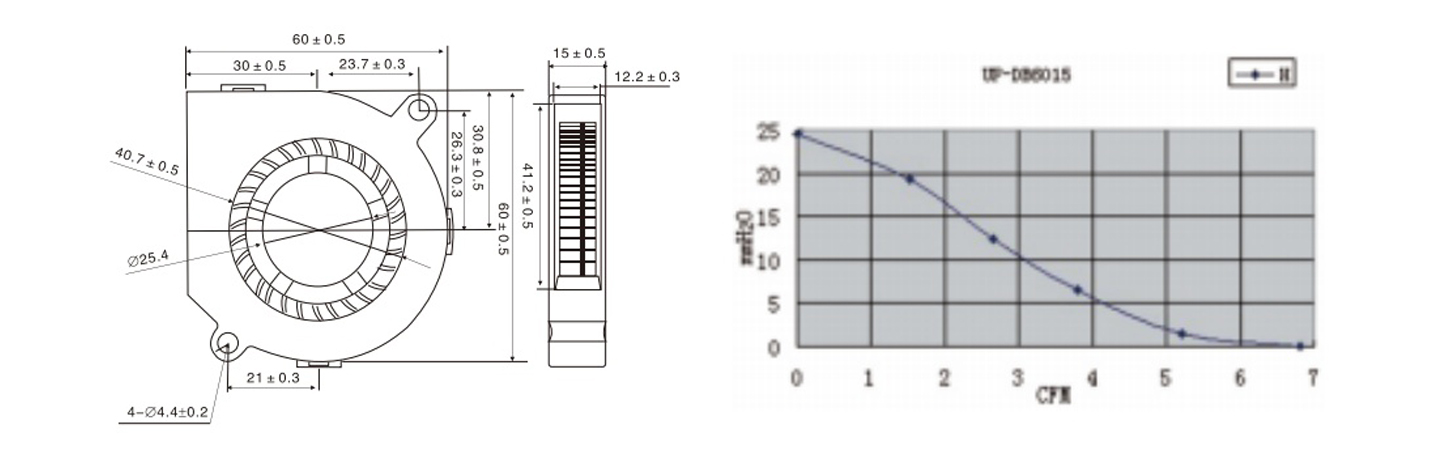

| Size: | 60*60*15mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 32g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

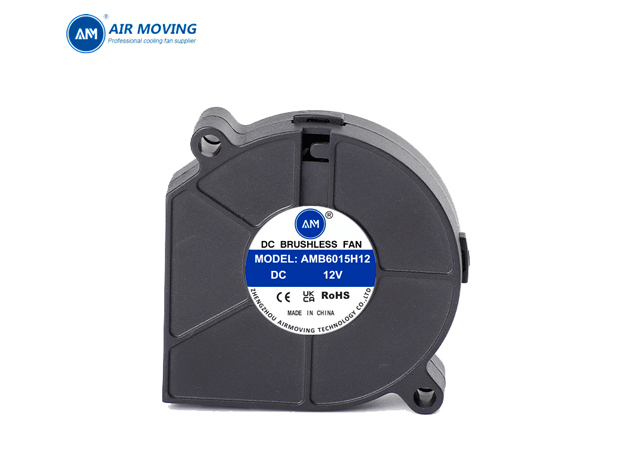

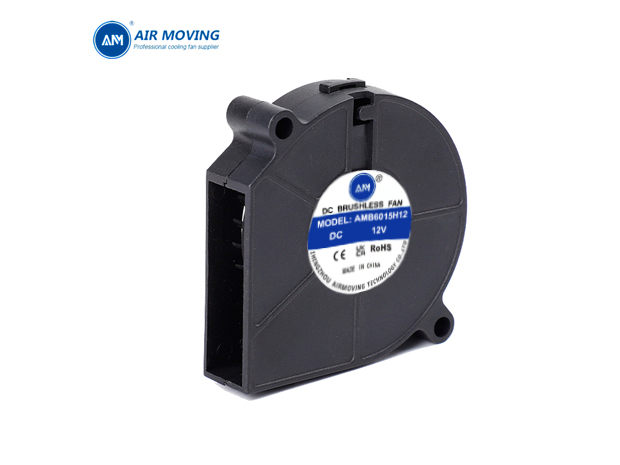

Item code: DC blower fan 6015
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#26
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AMB6015H5B(S) | 5.0 | 3.0-5.5 | 1.75 | 0.35 | 5500 | 6.8 | 24.50 | 45 |
| AMB6015M5B(S) | 1.15 | 0.23 | 4800 | 5.2 | 19.30 | 40 | ||
| AMB6015L5B(S) | 0.65 | 0.13 | 3800 | 3.8 | 12.35 | 35 | ||
| AMB6015H12B(S) | 12.0 | 6.0-13.8 | 2.64 | 0.22 | 5500 | 6.8 | 24.50 | 45 |
| AMB6015M12B(S) | 1.56 | 0.13 | 4800 | 5.2 | 19.30 | 40 | ||
| AMB6015L12B(S) | 1.08 | 0.09 | 3800 | 3.8 | 12.35 | 35 |
