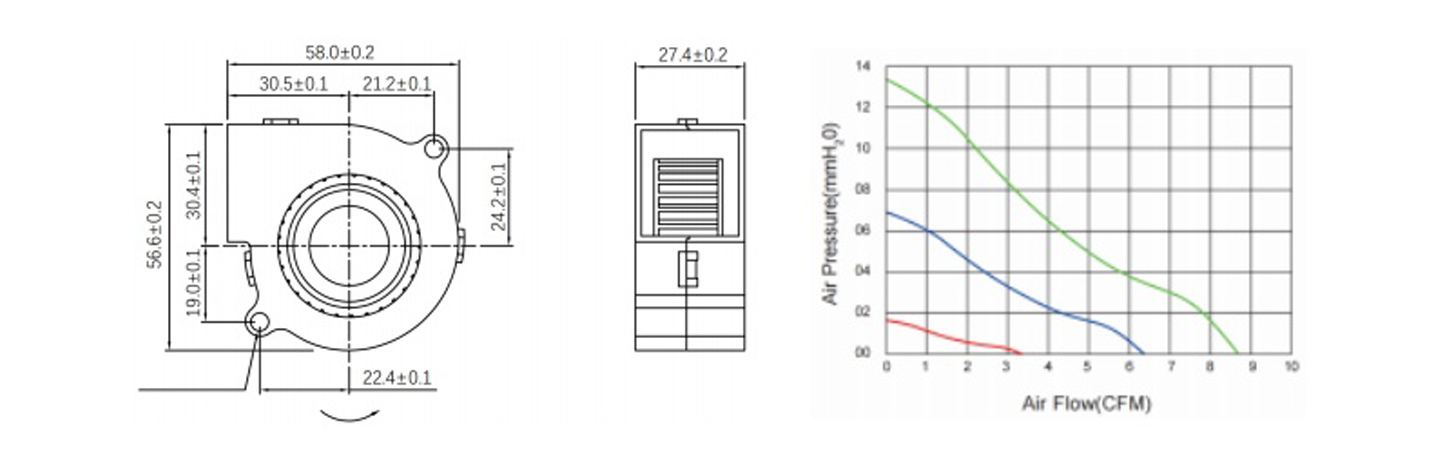

| Size: | 60*60*28mm |
| Motor: | DC brushless fan motor |

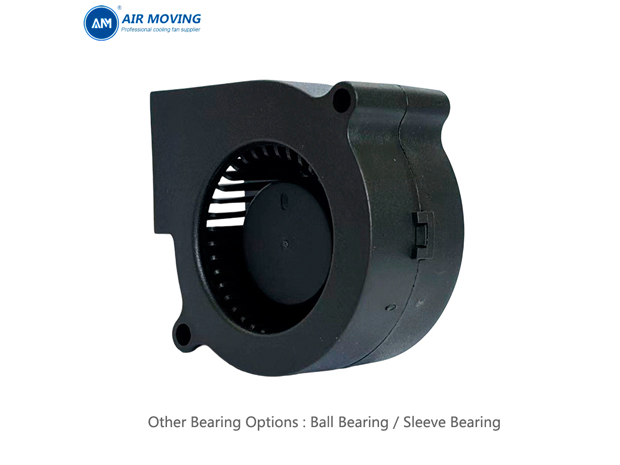

| Bearing: | Ball, Sleeve |

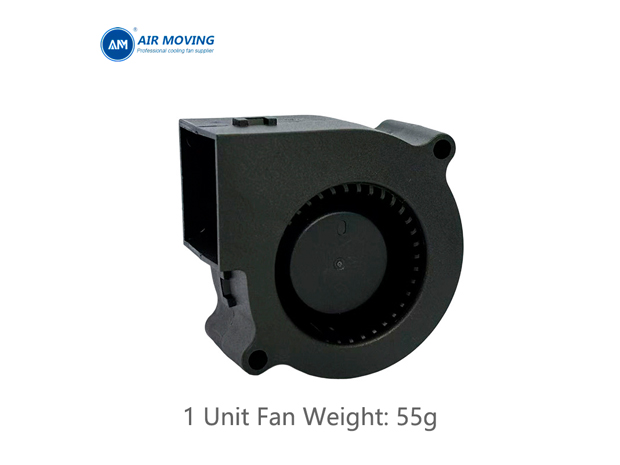

| Weight: | 55g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |

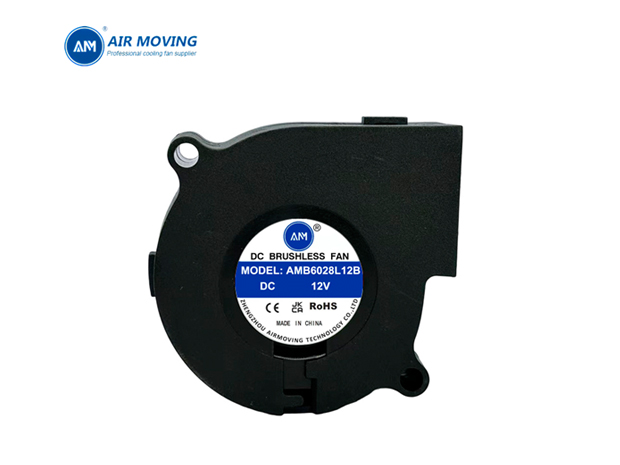

Item code: DC blower fan 6028
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#26
“+” Red, “-” Black
Available Option: “Sensor” Yellow, “PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AMB6028L12B(S) | 12.0 | 6.0-13.8 | 1.20 | 0.10 | 2500 | 3.38 | 1.98 | 24.8 |
| AMB6028M12B(S) | 3.60 | 0.30 | 4500 | 6.08 | 6.42 | 37.6 | ||
| AMB6028H12B(S) | 9.60 | 0.80 | 6500 | 8.79 | 13.38 | 45.5 | ||
| AMB6028L24B(S) | 24.0 | 12.0-27.0 | 1.44 | 0.60 | 2500 | 3.38 | 1.98 | 24.8 |
| AMB6028M24B(S) | 6.00 | 0.25 | 4500 | 6.08 | 6.42 | 37.6 | ||
| AMB6028H24B(S) | 12.00 | 0.50 | 6500 | 8.79 | 13.38 | 45.5 |
