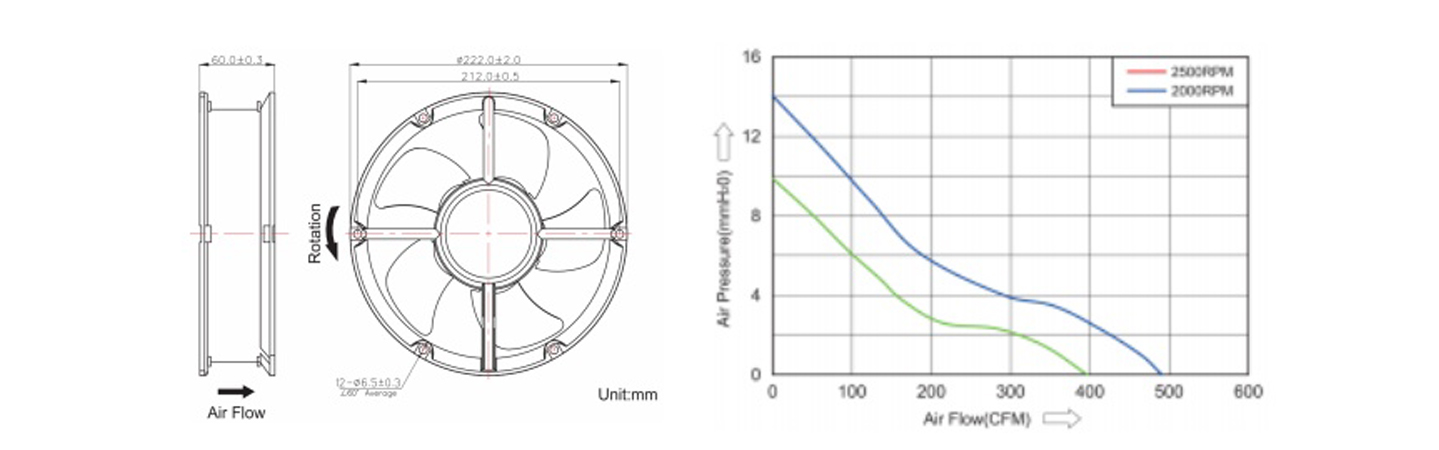

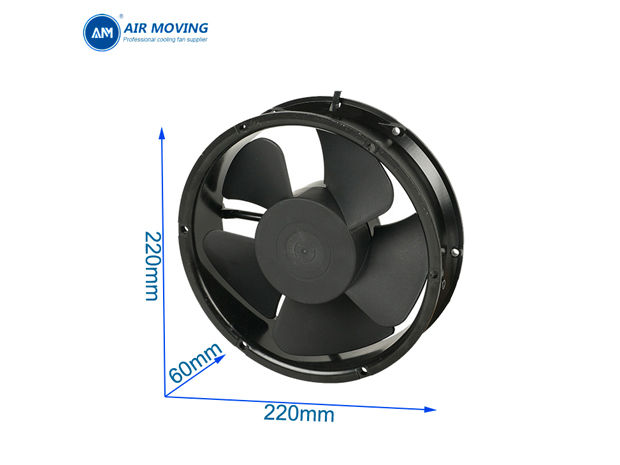

| Size: | Φ220*60mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |
| Weight: | 1350g |
| Safety: | Impedance Protected |
Item code: EC 22060
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
Termination: Lead wire, no connector
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Bearing System | Rated Voltage | Freq. | Operation Volgate | Rated Current | Power | Rated Speed | Air Flow | Air Pressure | Noise Level | weight | |
| Ball | Sleeve | VAC | Hz | VAC | A | W | RPM | CFM | mmH2O | dBA | g | |

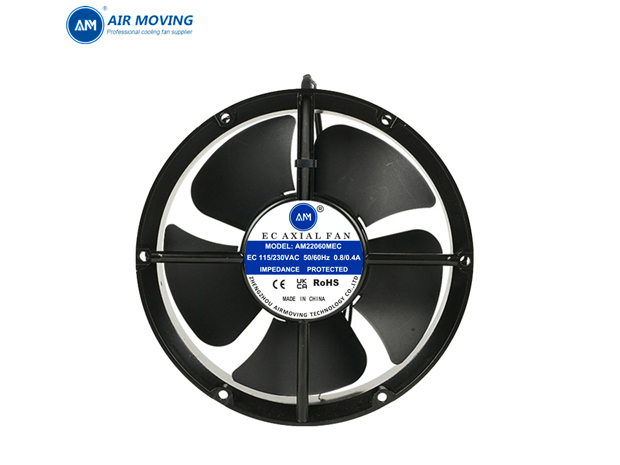

| AM22060MEC | √ | 115/230 | 50/60 | 98-264 | 0.8/0.4 | 45 | 2500 | 532.0 | 18.8 | 50 | 1350g | |
| AM22060LEC | √ | 0.4/0.2 | 25 | 2000 | 490.0 | 15.5 | 48 | |||||
