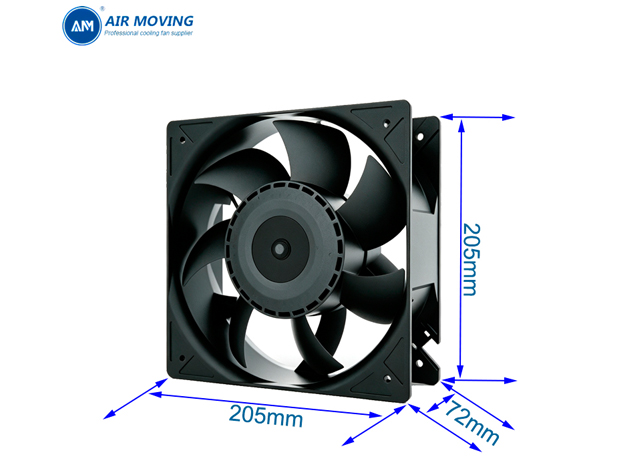

| Size: | 205*205*72mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball or Sleeve |
| Weight: | 750g |
| Safety: | Impedance Protected |

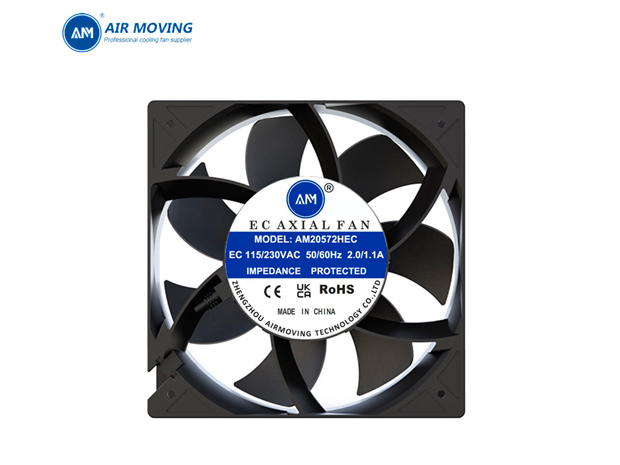

Item code: EC 20572
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
Termination: Lead wire, no connector
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type
| Model | Bearing System | Rated Voltage | Freq. | Operation Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level | |
| Ball | Sleeve | V AC | Hz | V AC | Amp | Watt | RPM | CFM | mmH2O | dBA | |
| AM20572HEC | √ | √ | 115/230 | 50/60 | 98-264 | 2.0/1.1 | 145 | 3500 | 879.8 | 35.7 | 73.1 |
| AM20572MEC | √ | √ | 1.6/0.8 | 95 | 3000 | 754.1 | 26.2 | 69.4 | |||
| AM20572LEC | √ | √ | 1.0/0.5 | 60 | 2500 | 628.4 | 18.2 | 65 | |||
