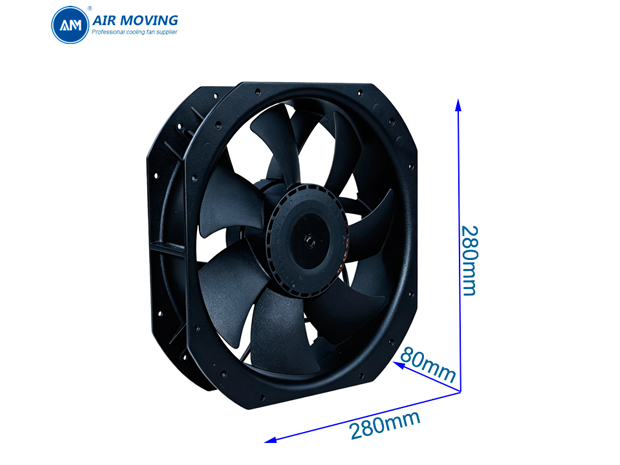

| Size: | 280*280*80mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball or Sleeve |
| Weight: | 2400g |
| Safety: | Impedance Protected |
Item code: EC 28080
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
Termination: Lead wire, no connector
Operating Temperature: -10℃ to +70℃ for Sleeve Type
-20℃ to +80℃ for Ball Type

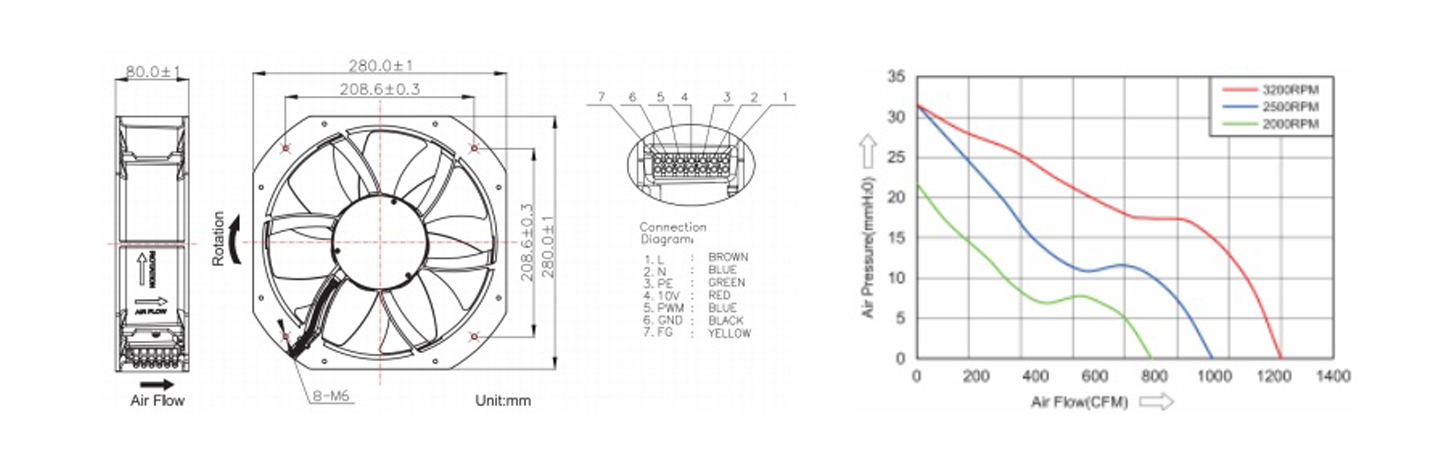

| Model | Bearing System | Rated Voltage | Freq. | Operation Voltage | Rated Current | Rated Power | Rated Speed | Air Flow | Air Pressure | Noise Level | |
| Ball | Sleeve | V AC | Hz | V AC | Amp | Watt | RPM | CFM | mmH2O | dBA | |

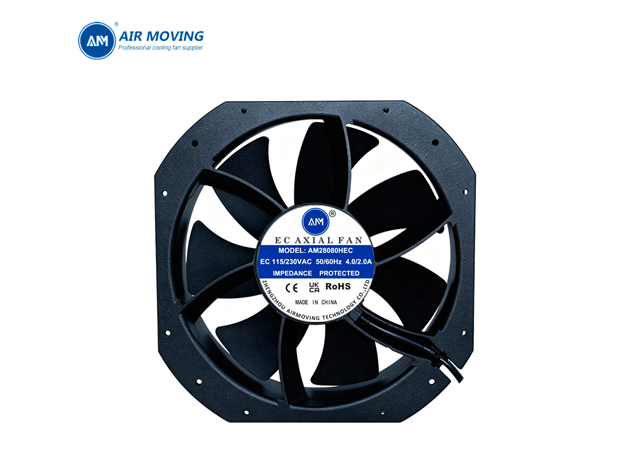

| AM28080HEC | √ | √ | 115/230 | 50/60 | 98-264 | 4.0/2.0 | 145 | 3200 | 1234.7 | 28.2 | 71.5 |
| AM28080MEC | √ | √ | 1.4/0.7 | 75 | 2500 | 964.6 | 17.2 | 65.6 | |||
| AM28080LEC | √ | √ | 1.0/0.5 | 45 | 2000 | 771.7 | 11.0 | 60.2 | |||
