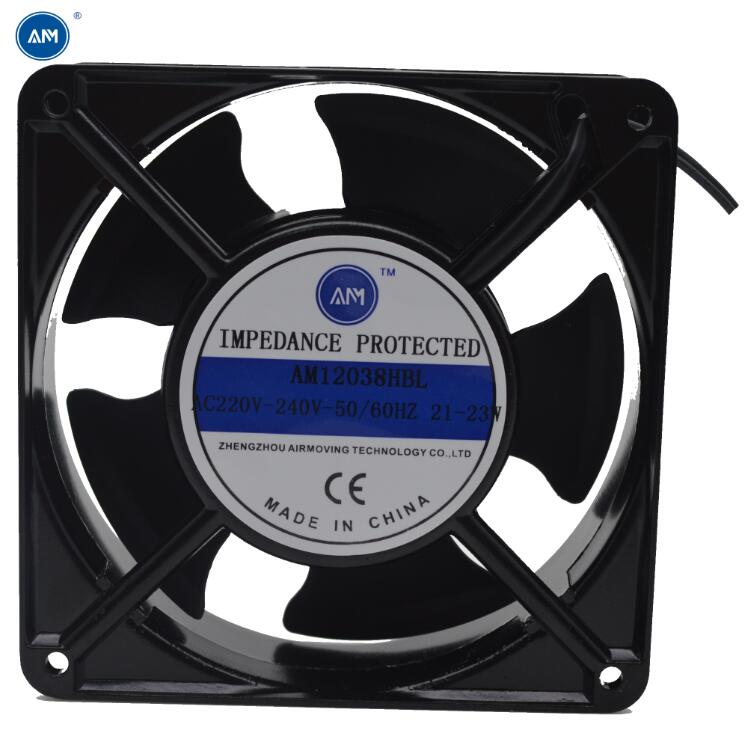

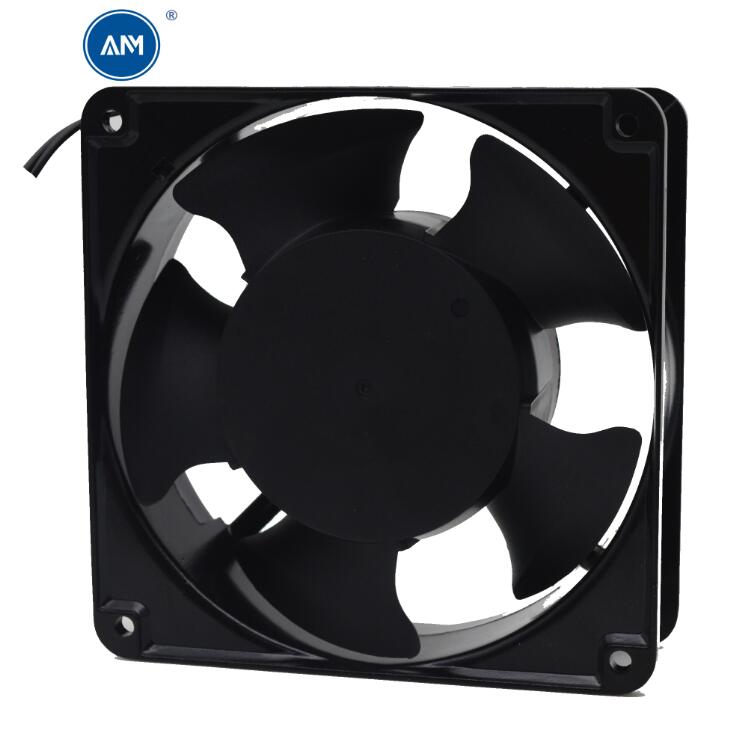

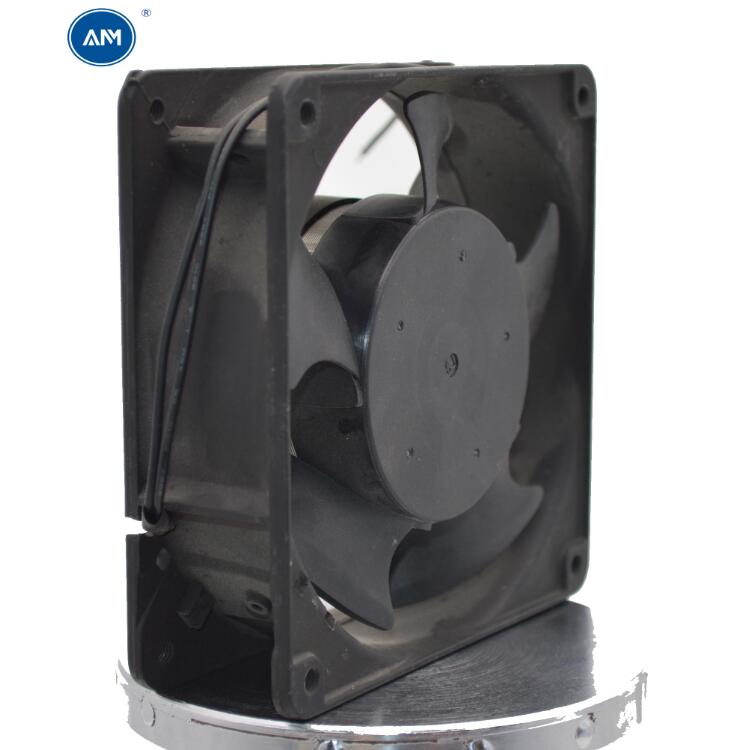

AC 12038, CCA wires

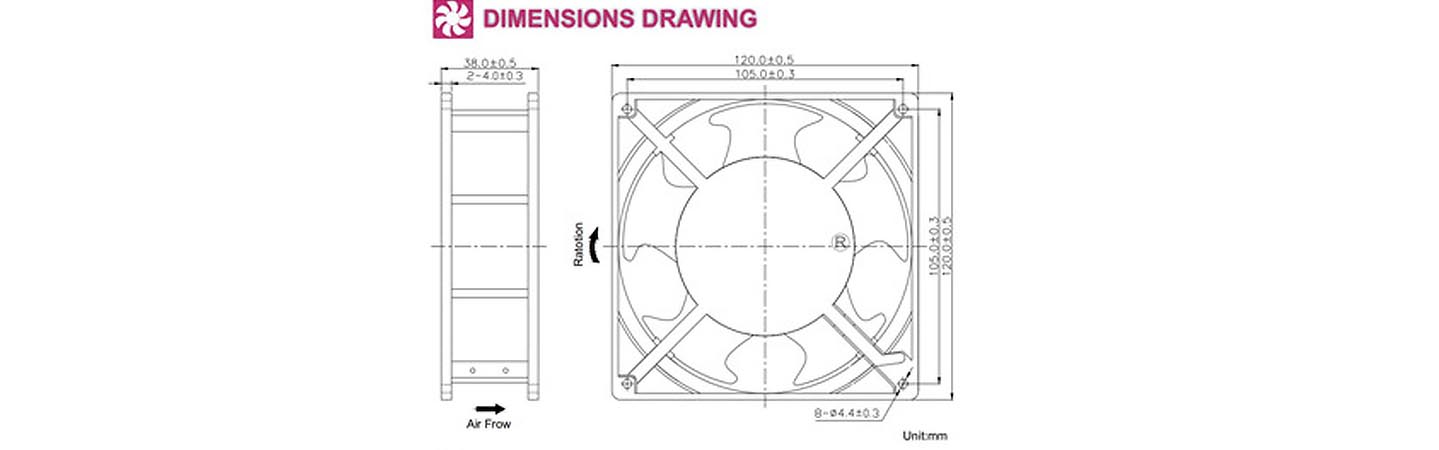

Size: 120*120*38mm
Motor wires: Copper clad aluminium motor wires
Bearing: Sleeve
Weight: 380g
Safety: Impedance Protected
Technical characteristics

Item code: AC 12038, CCA wires

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24,

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type

Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz Amp Watt RPM CFM MmH2O dBA
AM12038LS1 110-125 50/60 0.10 10/9 2200/2300 66/72 3.2/5.1 35/39
AM12038LS2 200-240 50/60 0.10 10/9 2200/2300 66/72 3.2/5.1 35/39
