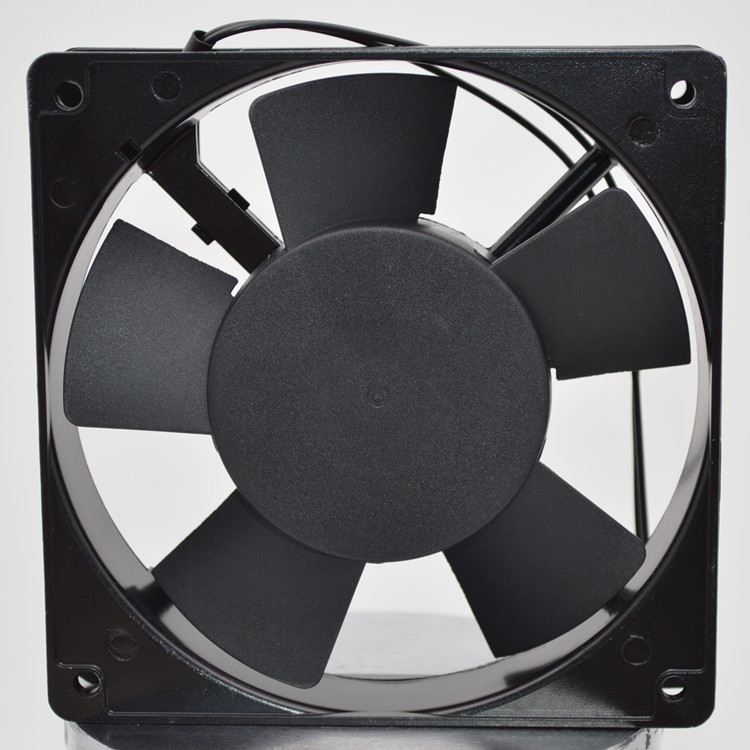

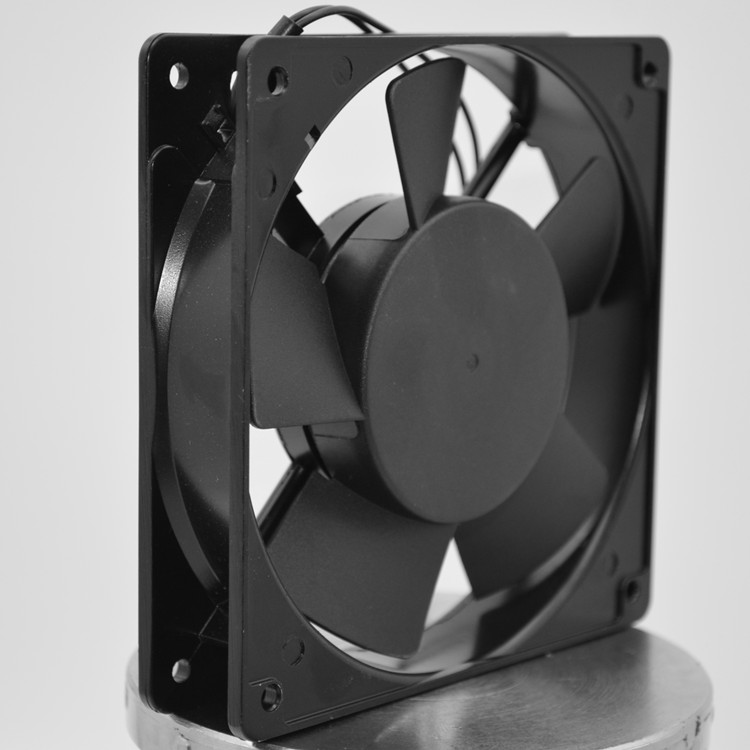

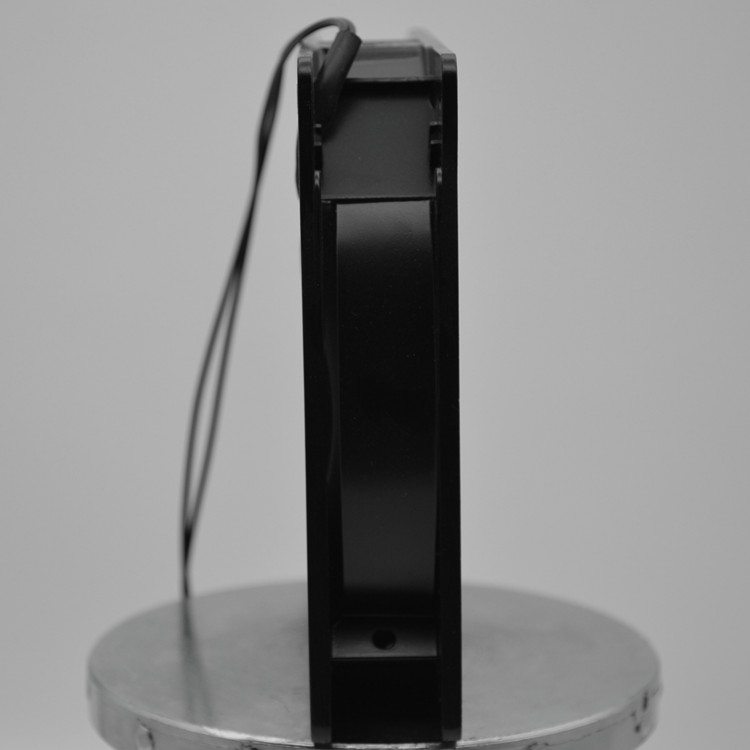

AC 12025

Size: 120*120*25mm
Motor wires: 100% pure copper motor wires
Bearing: Ball or Sleeve
Weight: 280g
Safety: Impedance Protected
Technical characteristics

Item code: AC 12025

Housing: Aluminum Alloy, Painted Black

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24,

Termination: Lead wire, no connector

Operating Temperature: -10℃ to +70℃ for Sleeve Type
                                        -20℃ to +80℃ for Ball Type


Performance Parameter
Model Bearing System Rated Voltage Frequency Rated Current Rated Input Power Rated Speed Air Flow Air Pressure Noise Level
Ball Sleeve V AC Hz Amp Watt RPM CFM MmH2O dBA
AM12025MS1 110-125 50/60 0.20/0.18 18/16 2000/2400 57/64 3.3/3.8 40/45
AM12025MB1 110-125 50/60 0.20/0.18 18/16 2100/2500 57/64 3.3/3.8 40/45
AM12025MS2 200-240 50/60 0.10/0.09 18/16 2000/2400 57/64 3.3/3.8 40/45
AM12025MB2 200-240 50/60 0.10/0.09 18/16 2100/2500 57/64 3.3/3.8 40/45
