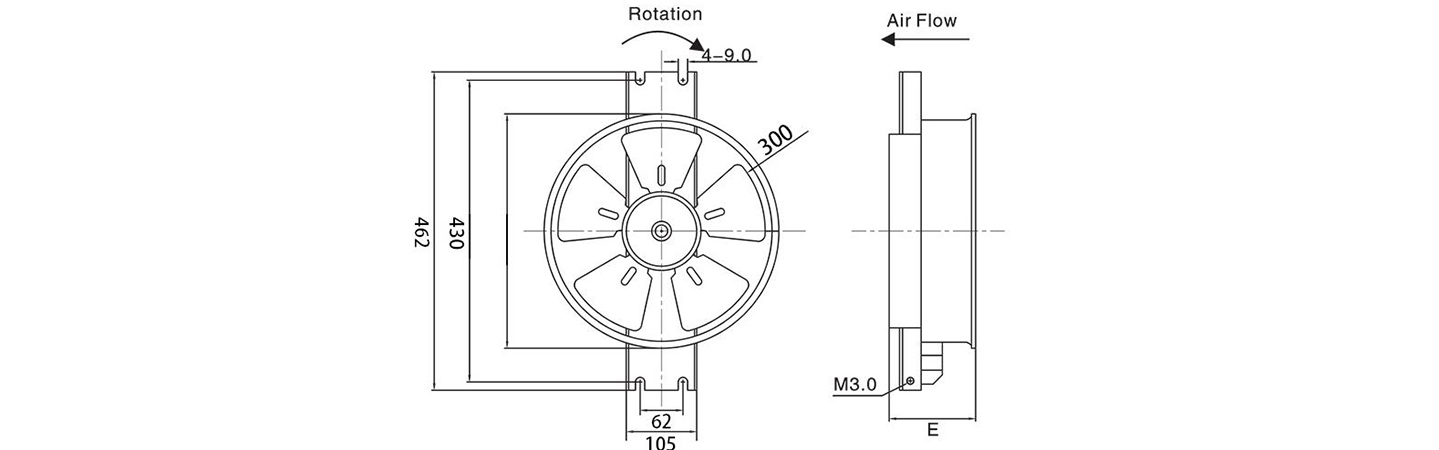

| Size： | Φ300mm |
| Motor wires: | 100% pure copper motor wires |
| Bearing: | Ball |
| Weight: | 3700g |
Item code: AC 300FZY2-D
Housing: Iron, Painted Black
Impeller: Iron, Painted Black
Lead Wire: UL 1007 AWG#22
Termination: Lead wire, no connector
Operating Temperature: -20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Frequency | Rated Current | Imput power W | Rated Speed | Air Flow | Phase No. | Capacitance | Noise Level |
| V AC | Hz | Amp | RPM | M3/hr | dBA | ||||
| AM300FZY2-D | 220V | 50/60 | 0.4 | 80 | 1400/1500 | 1320/1450 | 1 | 2.4μF/450V | 64/65 |
| AM300FZY3-D | 380V | 50/60 | 0.2 | 80 | 1400/1500 | 1320/1450 | 3 | / | 64/65 |
| AM300FZY4-D | 380V | 50/60 | 0.22 | 80 | 1400/1500 | 1320/1450 | 1 | 1μF/500V | 64/65 |
| AM300FZY6-D | 220V | 50/60 | 0.8 | 160 | 2500/2700 | 2040/2200 | 1 | 4μF/500V | 75/76 |
| AM300FZY7-D | 380V | 50/60 | 0.45 | 160 | 2500/2700 | 2040/2200 | 3 | / | 75/76 |
| AM300FZY8-D | 380V | 50/60 | 0.5 | 160 | 2500/2700 | 2040/2200 | 1 | 2.4μF/500V | 75/76 |
