| Size: | 60*60*10mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 31g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |

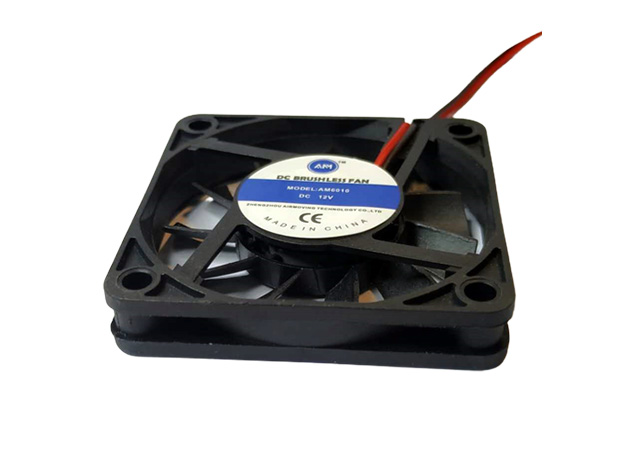

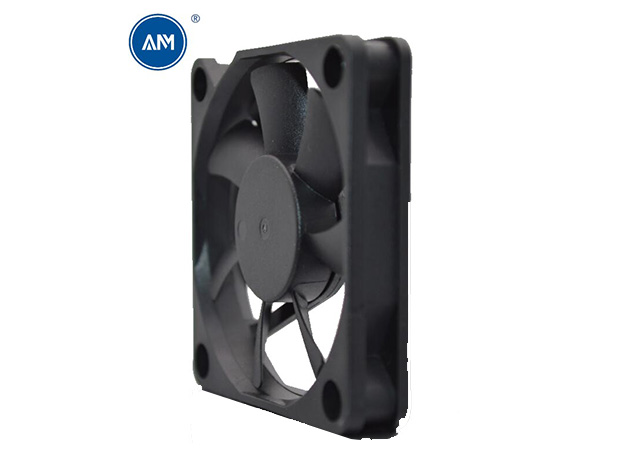

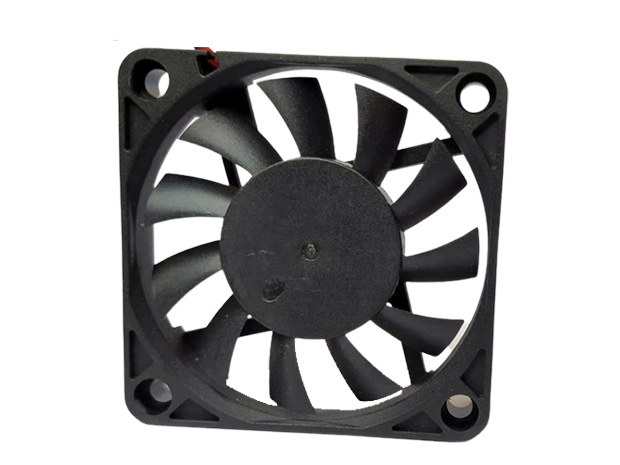

Item code: DC6010
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM6010H5 | 5.0 | 4.5-5.5 | 1.75 | 0.35 | 4000 | 18.1 | 3.3 | 28 |
| AM6010M5 | 1.50 | 0.30 | 3500 | 14.8 | 2.5 | 26 | ||
| AM6010L5 | 1.25 | 0.25 | 3000 | 12.5 | 1.7 | 23 | ||
| AM6010H12 | 12.0 | 6.0-13.8 | 2.76 | 0.23 | 4000 | 18.1 | 3.3 | 28 |
| AM6010M12 | 2.16 | 0.18 | 3500 | 14.8 | 2.5 | 26 | ||
| AM6010L12 | 1.56 | 0.13 | 3000 | 12.5 | 1.7 | 23 | ||
| AM6010H24 | 24.0 | 12.0-27.6 | 2.40 | 0.10 | 4000 | 18.1 | 3.3 | 28 |
| AM6010M24 | 0.96 | 0.08 | 3500 | 14.8 | 2.5 | 26 | ||
| AM6010L24 | 1.44 | 0.06 | 3000 | 12.5 | 1.7 | 23 |
