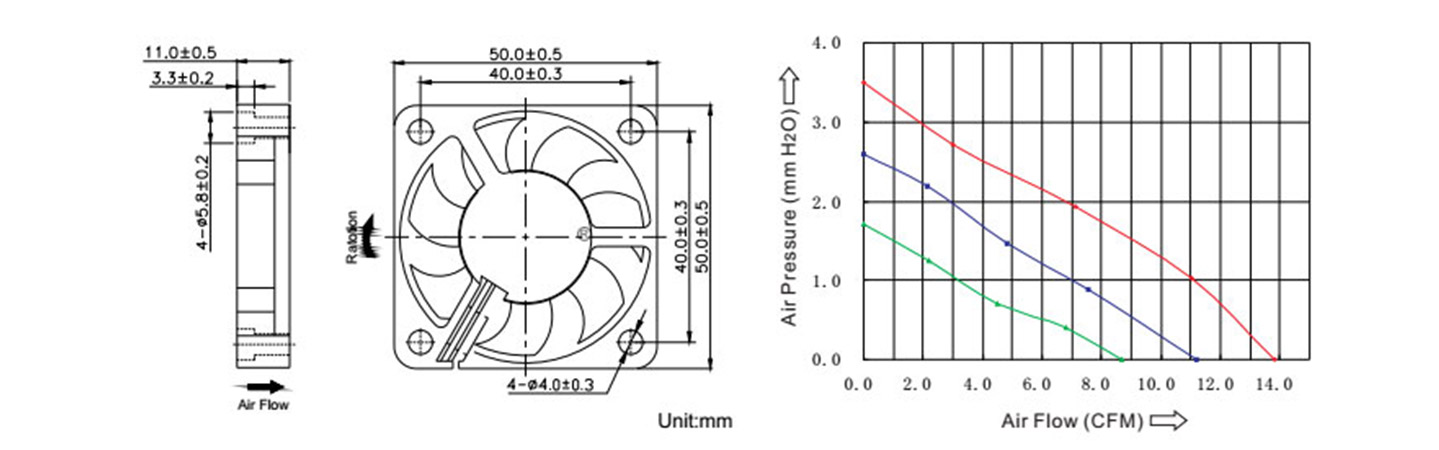

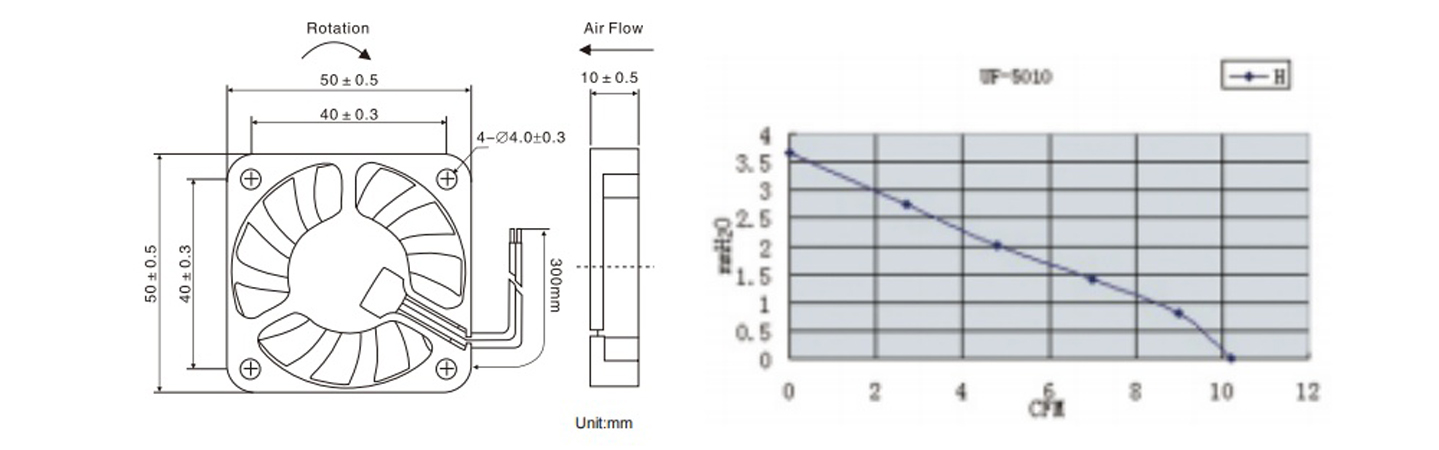

| Size: | 50*50*10mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 18g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC5010
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM5010H5B(S) | 5.0 | 3.0-5.5 | 1.50 | 0.30 | 5300 | 10.20 | 3.65 | 33 |
| AM5010M5B(S) | 1.00 | 0.20 | 4500 | 9.15 | 2.75 | 27 | ||
| AM5010L5B(S) | 0.70 | 0.14 | 3400 | 7.20 | 2.02 | 21 | ||

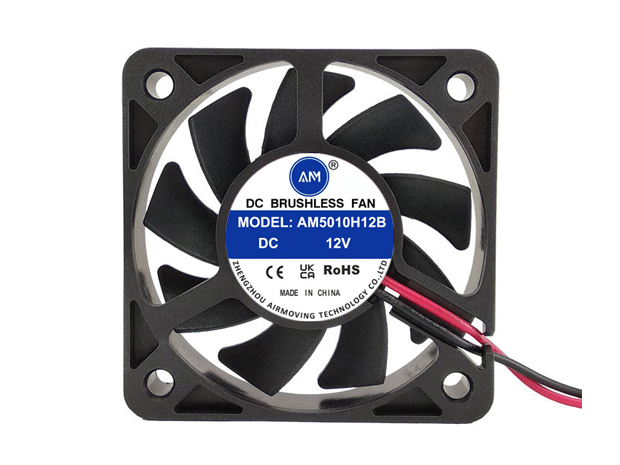

| AM5010H12B(S) | 12.0 | 6.0-13.8 | 1.92 | 0.16 | 5300 | 10.20 | 3.65 | 33 |
| AM5010M12B(S) | 0.96 | 0.08 | 4500 | 9.15 | 2.75 | 27 | ||
| AM5010L12B(S) | 0.84 | 0.07 | 3500 | 7.20 | 2.02 | 21 | ||
| AM5010H24B(S) | 24.0 | 12.0-27.0 | 2.16 | 0.09 | 6000 | 10.20 | 3.65 | 33 |
| AM5010M24B(S) | 1.68 | 0.07 | 5000 | 9.15 | 2.75 | 27 | ||
| AM5010L24B(S) | 1.20 | 0.05 | 4000 | 7.20 | 2.02 | 21 |
