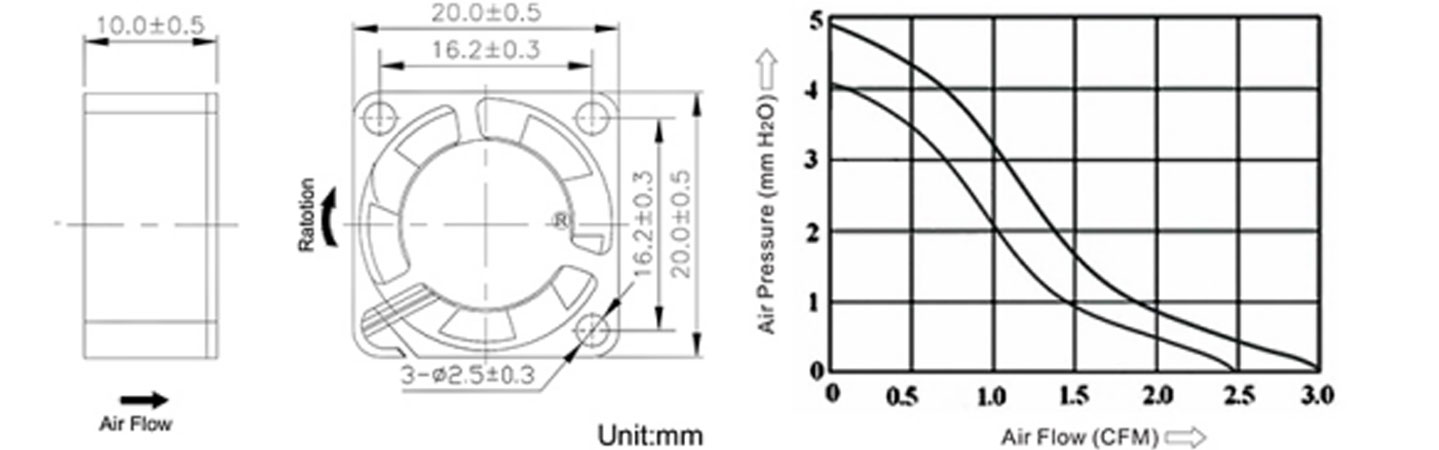

| Size: | 20*20*10mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 6g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC2010
Housing: Thermoplastic PBT,UL94V-0
Impeller: Thermoplastic PBT,UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |
| AM2010U5 | 5.0 | 4.5-5.5 | 1.00 | 1.00 | 20000 | 1.71 | 8.10 | 30 |
| AM2010T5 | 0.85 | 0.85 | 18000 | 1.56 | 7.50 | 29 | ||
| AM2010H5 | 0.65 | 0.65 | 15000 | 1.22 | 4.83 | 27 | ||
| AM2010M5 | 0.50 | 0.50 | 10000 | 0.83 | 2.26 | 22 | ||
| AM2010L5 | 0.35 | 0.35 | 8000 | 0.60 | 1.94 | 21 | ||
| AM2010U12 | 12.0 | 6.0-13.8 | 0.84 | 0.84 | 20000 | 1.71 | 8.10 | 30 |
| AM2010T12 | 0.72 | 0.72 | 18000 | 1.56 | 7.50 | 29 | ||
| AM2010H12 | 0.60 | 0.60 | 15000 | 1.22 | 4.83 | 27 | ||
| AM2010L12 | 0.36 | 0.36 | 10000 | 0.83 | 2.26 | 22 |
