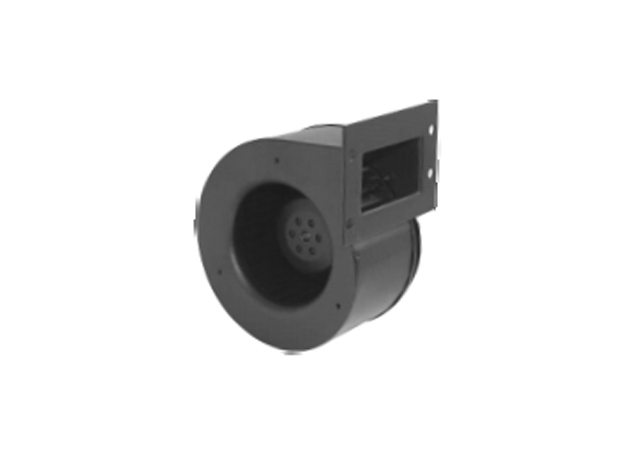

AC Centrifugal Fan :Φ120x62mm

Technical characteristics
  • Size:Φ120x62mm
  • Weight:2500g
  • Impeller Material:metal
  • Motor:Capacitor-Run And External Rotor Induction Motor
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

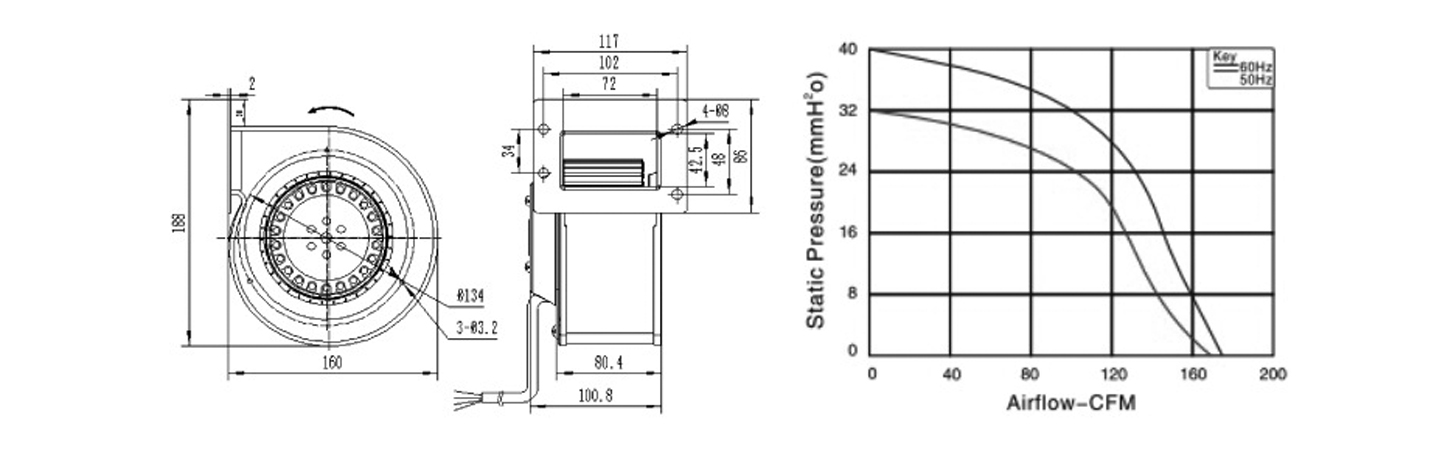

图表2
Performance Parameter

Model Voltage     VAC Freq             Hz Current          A Power           W Speed       RPM Noise         dBA Capacitor μF/VAC Air Flow     CFM
120FLJ-B2E01W 115 50/60 0.7/0.8 80/90 2500/2600 56/60 8/250 178/185
120FLJ-B2E02W 230 50/60 0.42/0.48 80/100 2500/2600 56/60 2.2/500 178/185
120FLJ-B2E03W 380 50 0.3 105 2400 56 / 185
120FLJ-B2E06W 380 50 0.3 105 2400 56 1/500 185
