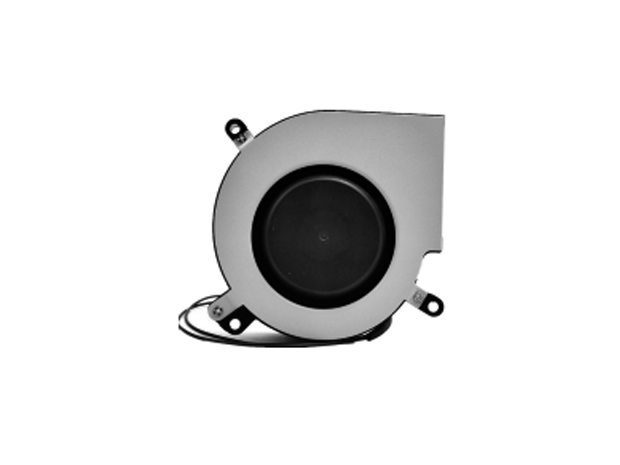

AC Centrifugal Fan :Φ120x120x32mm

Technical characteristics
  • Size:120x120x32mm
  • Weight:675g
  • Impeller Material:plastic    Frame:metal
  • Lead Wire:Teflon 22#UL 1332(ptional)
  • Operating Temperature:-10℃~+65℃
  • Type of protection:IP44
  • Insulation class:"F"

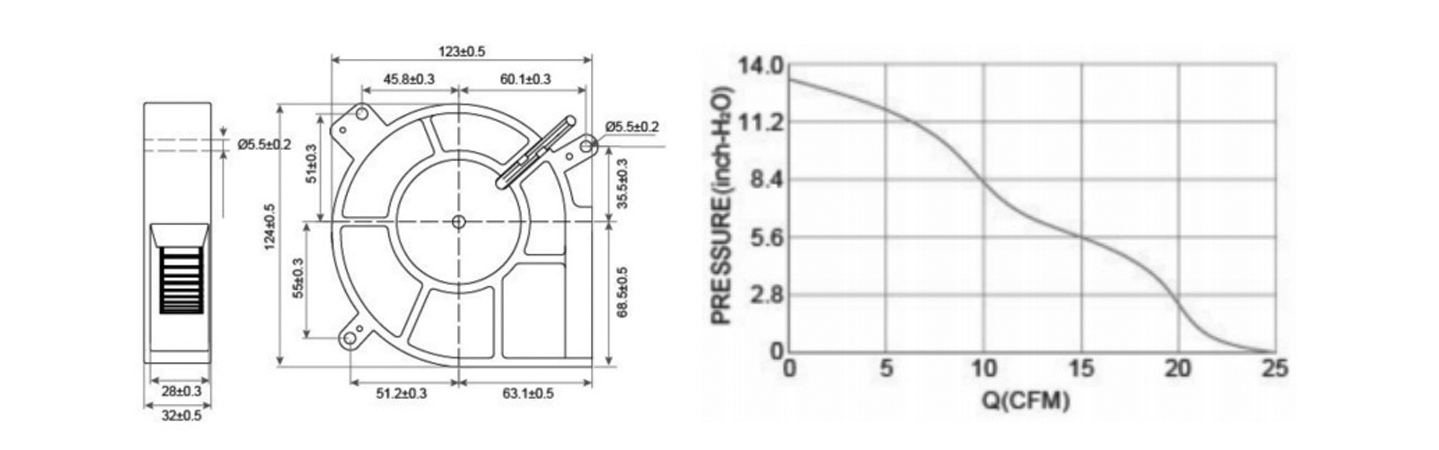

图表
Performance Parameter
Model Voltage VAC Freq        Hz Current      A Power        W Speed    RPM Noise     dBA Pressure  Pa Air Flow CFM
12032HB1L 115 50/60 0.26/0.20 21/19 2200 45 129 24.8
12032HB2L 230 50/60 0.12/0.10 21/19 2200 45 129 24.8
