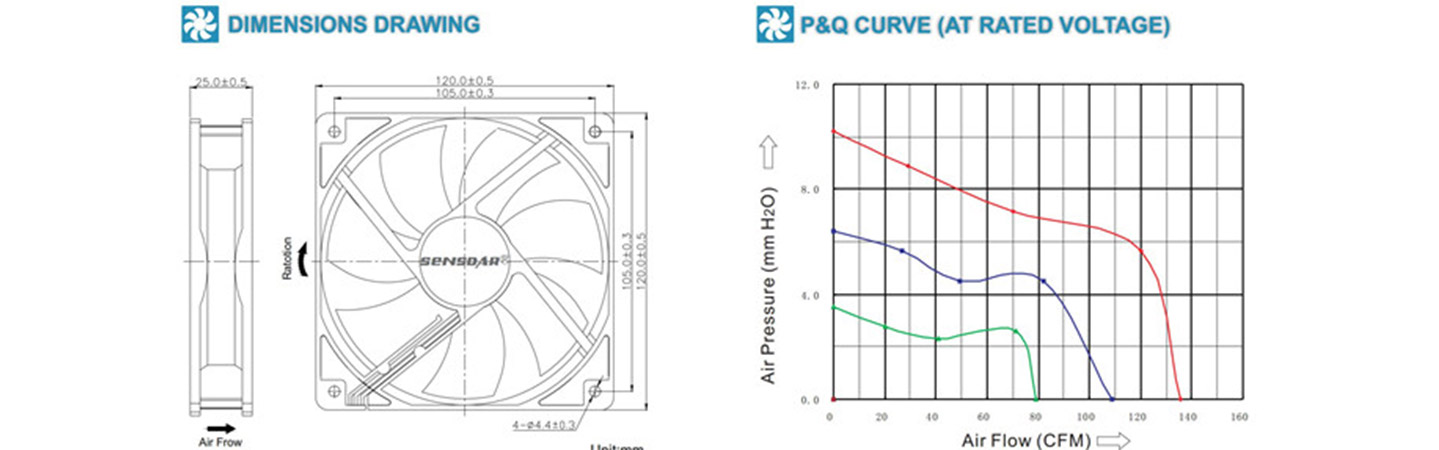

| Size: | 120*120*25mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 140g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level | |
| Remarks: for 120*120*25mm fan, normally there are 7 blades. While there are some customers who need more quite fans. We will recommend them using 120*120*25mm fan with 9 blades. | |

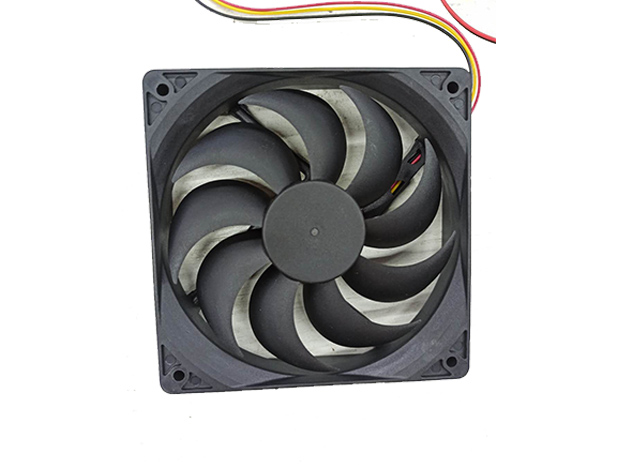

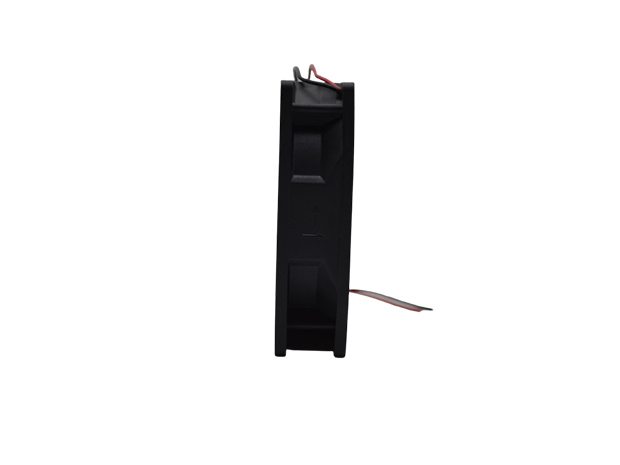

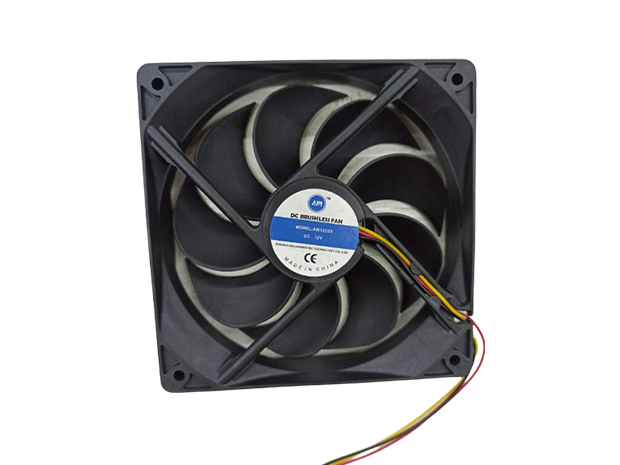

Item code: DC 12025 （9 blades）
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Available Option: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM12025H12 | 12.0 | 6.0-13.5 | 0.45 | 3000 | 107.0 | 5.04 | 47.4 |
| AM12025M12 | 0.31 | 2500 | 92.4 | 3.98 | 42.1 | ||
| AM12025L12 | 0.22 | 1800 | 72.0 | 2.13 | 34.5 | ||
| AM12025H24 | 24.0 | 18.0-26.5 | 0.23 | 3000 | 107.0 | 5.04 | 47.4 |
| AM12025M24 | 0.16 | 2500 | 92.4 | 3.98 | 42.1 | ||
| AM12025L24 | 0.11 | 1800 | 72.0 | 2.13 | 34.5 | ||
| AM12025H48 | 48.0 | 36.0-56.0 | 0.11 | 3000 | 107.0 | 5.04 | 47.4 |
| AM12025M48 | 0.08 | 2500 | 92.4 | 3.98 | 42.1 | ||
| AM12025L48 | 0.06 | 1800 | 72.0 | 2.13 | 34.5 |
