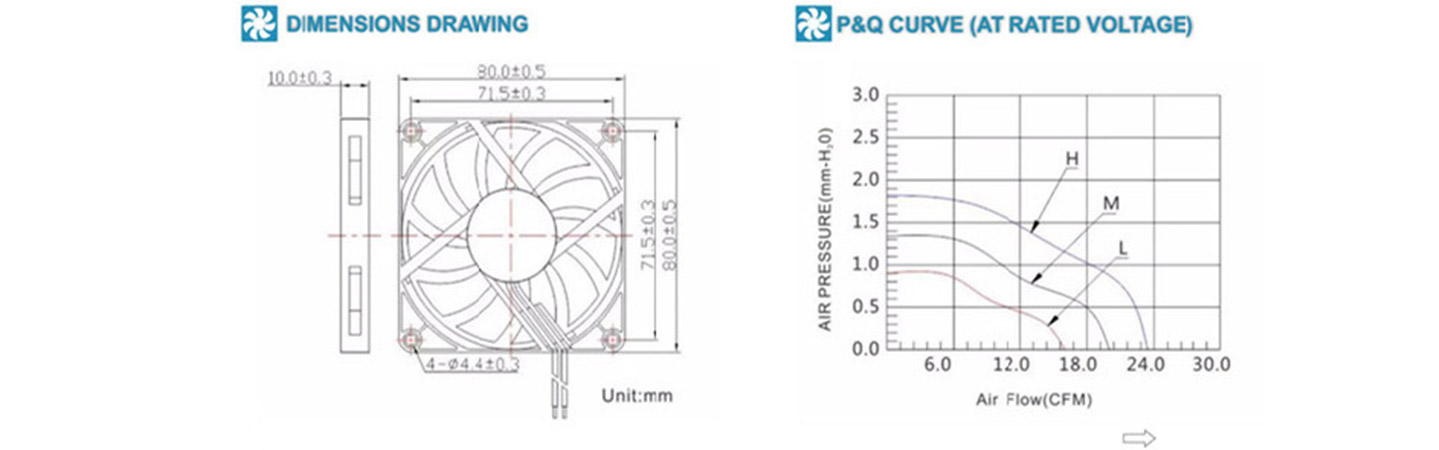

| Size: | 80*80*10mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve or Hydraulic |
| Weight: | 50g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC8010
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃，35%-85%RH for Sleeve Type
-20℃ to +80℃，35%-85%RH for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AM8010H12 | 12.0 | 6.0-13.8 | 0.15 | 3000 | 21.8 | 1.80 | 30.4 |
| AM8010M12 | 0.11 | 2500 | 18.1 | 1.20 | 26.5 | ||

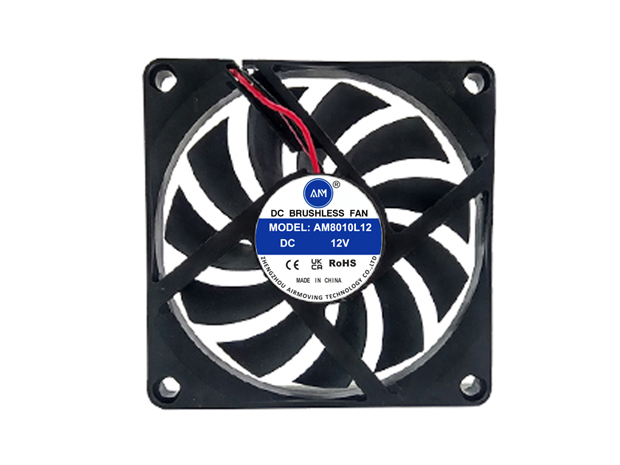

| AM8010L12 | 0.09 | 2000 | 14.4 | 0.79 | 21.6 | ||
| AM8010H24 | 24.0 | 12.0-27.6 | 0.08 | 3000 | 21.8 | 1.80 | 30.4 |
| AM8010M24 | 0.07 | 2500 | 18.1 | 1.20 | 26.5 | ||
| AM8010L24 | 0.05 | 2000 | 14.4 | 0.79 | 21.6 |
