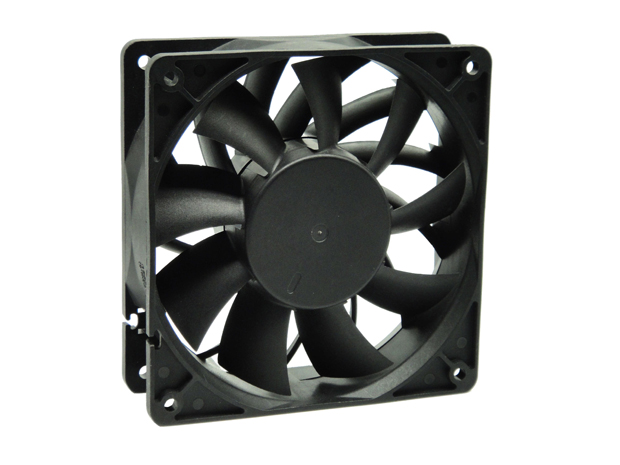

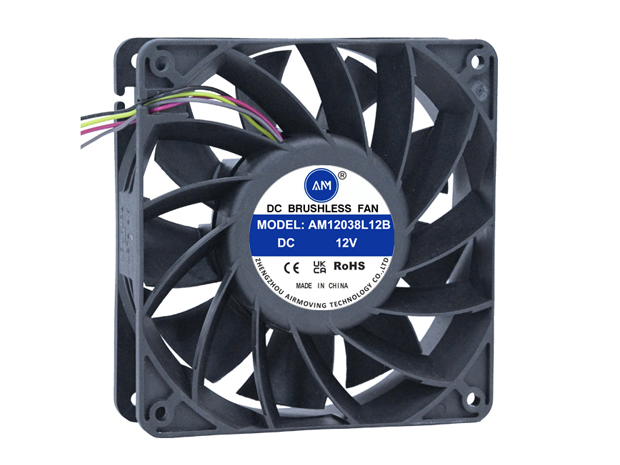

| Size: | 120*120*38mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball |
| Weight: | 320g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC 12038 high speed
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -20℃ to +80℃ for Ball Type

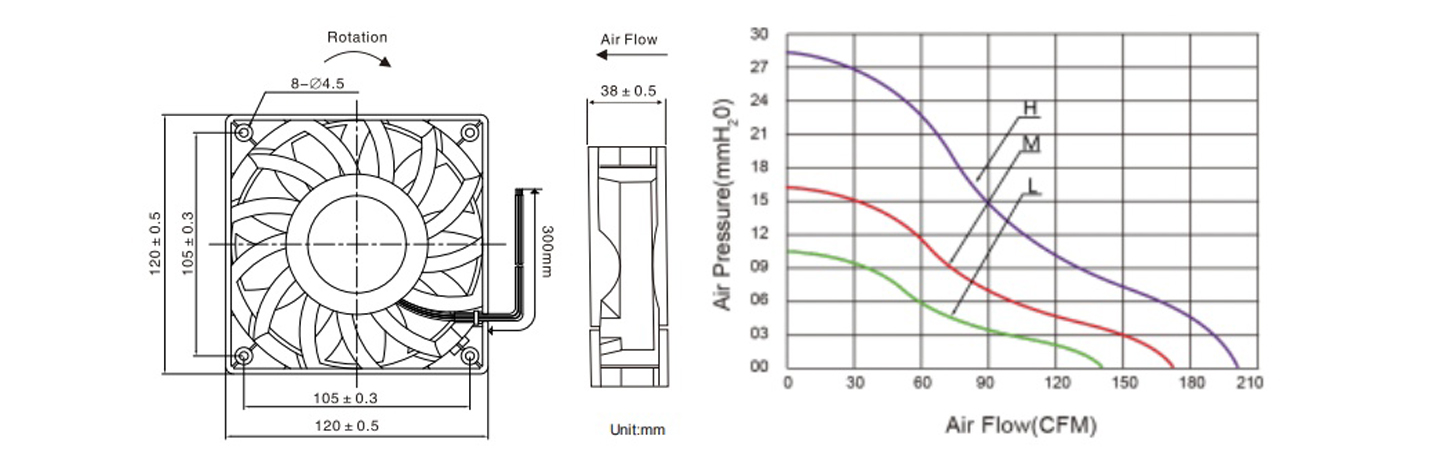

| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | A | RPM | CFM | MmH2O | dBA | |
| AM12038HH12B | 12.0 | 6.0-13.8 | 1.00 | 4500 | 141.45 | 10.93 | 56.4 |
| AM12038HM12B | 6.0-13.8 | 1.60 | 5500 | 173.62 | 15.24 | 59.3 | |
| AM12038HL12B | 6.0-13.8 | 2.50 | 6500 | 206.18 | 28.96 | 64.8 | |
| AM12038HH12B | 24.0 | 12.0-27.0 | 0.50 | 4500 | 141.45 | 10.93 | 56.4 |
| AM12038HM12B | 12.0-27.0 | 0.70 | 5500 | 173.62 | 15.24 | 59.3 | |
| AM12038HL24B | 12.0-27.0 | 1.00 | 6500 | 206.18 | 28.96 | 64.8 | |
| AM12038HH12B | 48.0 | 24.0-56.0 | 0.40 | 4500 | 141.45 | 10.93 | 56.4 |
| AM12038HM12B | 24.0-56.0 | 0.50 | 5500 | 173.62 | 15.24 | 59.3 | |
| AM12038HL24B | 24.0-56.0 | 0.60 | 6500 | 208.18 | 28.96 | 64.8 |
