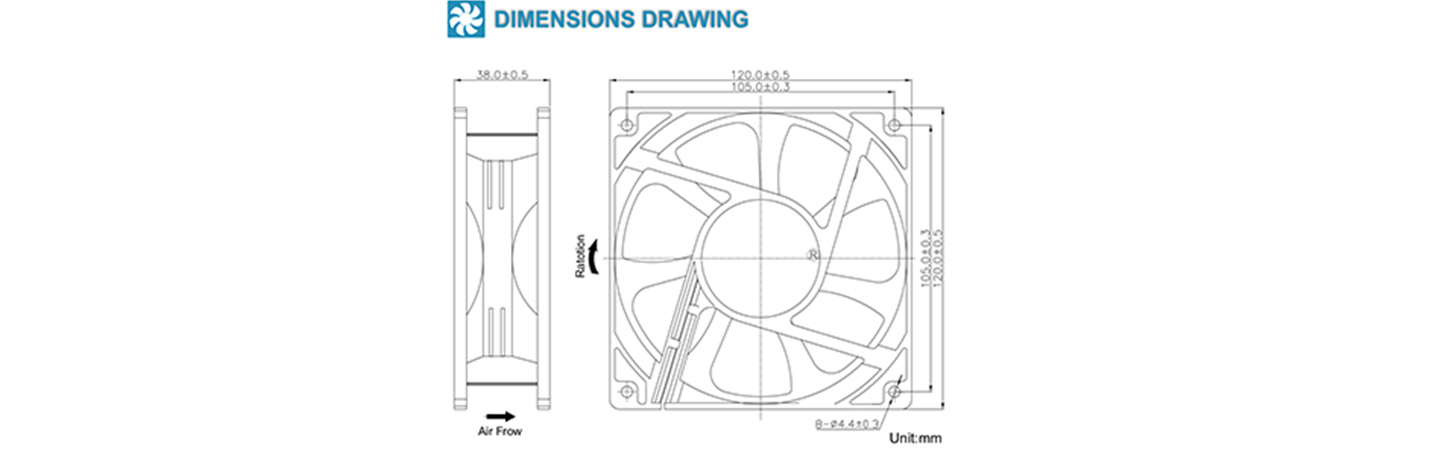

| Size: | 120*120*38mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball, Sleeve |
| Weight: | 270g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Auto restart | |
| 3.Waterproof Level |
Item code: DC 12038 high speed
Housing: Thermoplastic PBT, UL94V-0
Impeller: Thermoplastic PBT, UL94V-0
Lead Wire: UL 1007 AWG#24
“+” Red,“-” Black
Optional wire: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -20℃ to +80℃ for Ball Type

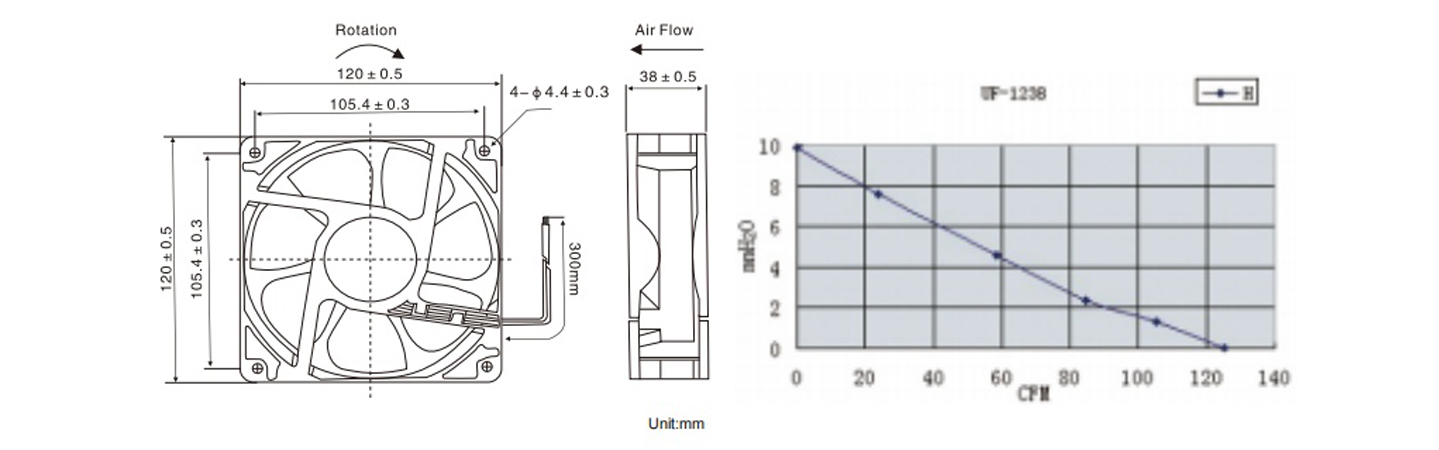

| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | A | RPM | CFM | MmH2O | dBA | |
| AM12038H12B(S) | 12.0 | 6.0-13.8 | 0.4 | 3000 | 125.32 | 9.85 | 46 |
| AM12038M12B(S) | 6.0-13.8 | 0.38 | 2700 | 105.94 | 7.6 | 41 | |
| AM12038L12B(S) | 6.0-13.8 | 0.23 | 2400 | 84.76 | 4.58 | 34 | |
| AM12038H12B(S) | 24.0 | 12.0-27.0 | 0.35 | 3000 | 125.32 | 9.85 | 46 |
| AM12038M12B(S) | 12.0-27.0 | 0.28 | 2700 | 105.94 | 7.6 | 41 | |
| AM12038L24B(S) | 12.0-27.0 | 0.2 | 2400 | 84.76 | 4.58 | 34 | |
| AM12038H12B(S) | 48.0 | 24.0-56.0 | 0.2 | 3000 | 125.32 | 9.85 | 46 |
| AM12038M12B(S) | 24.0-56.0 | 0.11 | 2700 | 105.94 | 7.6 | 41 | |
| AM12038L24B(S) | 24.0-56.0 | 0.06 | 2400 | 84.76 | 4.58 | 34 |
