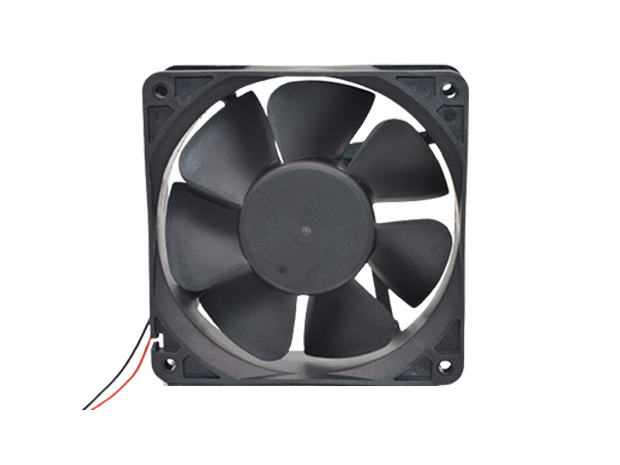

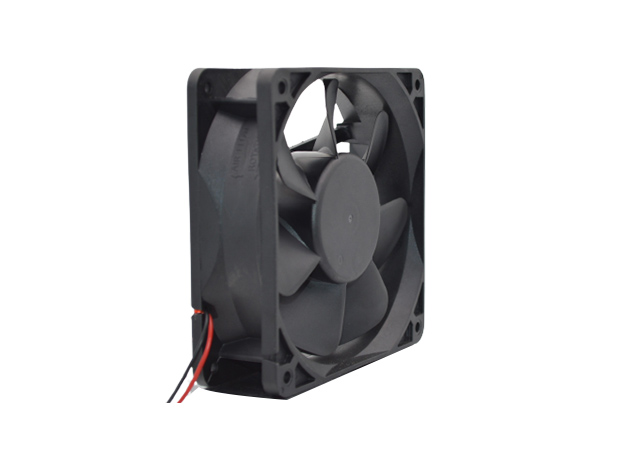

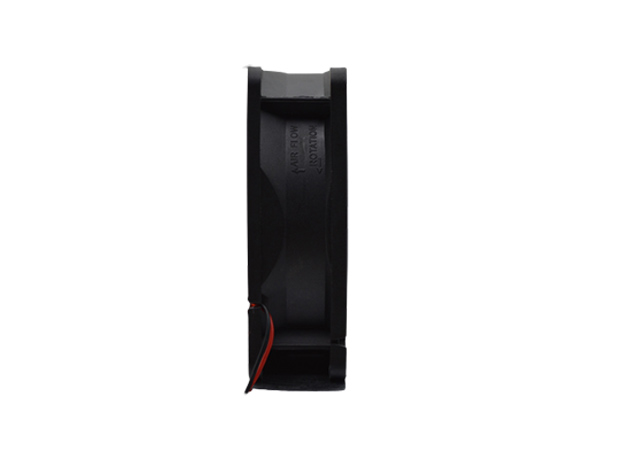

DC 12038 (two rotating directions)

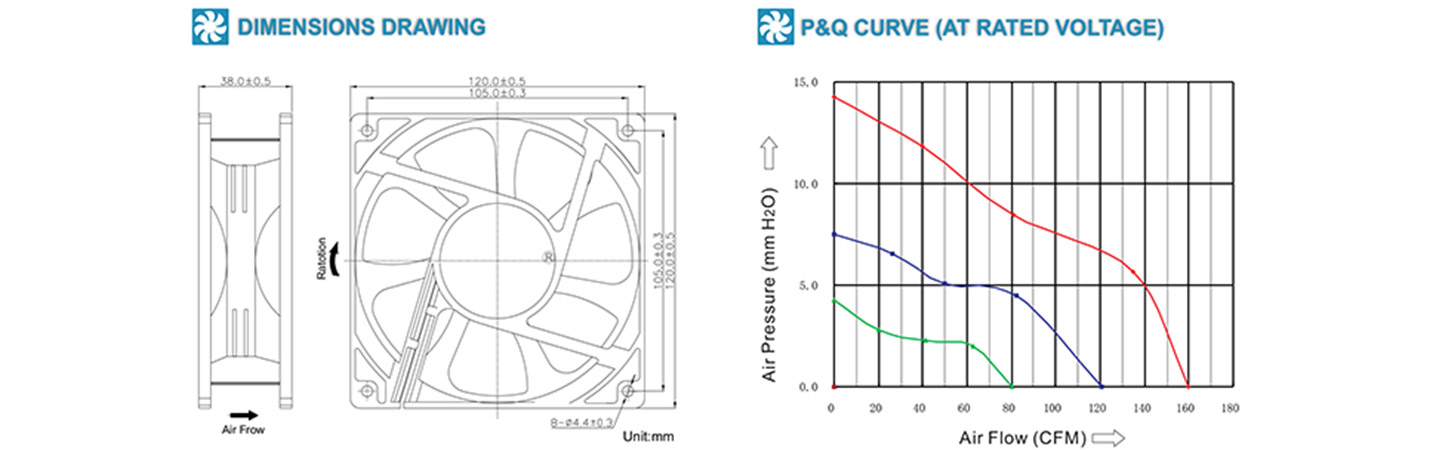

Size: 120*120*38mm
Motor: DC brushless fan motor
Bearing: Ball, Sleeve or Hydraulic
Weight: 270g
No. of Pole: 4 Poles
Rotating Direction: Counter-Clockwise
Optional Function: 1.Lock Protection
2.Auto restart
3.Waterproof Level
Technical characteristics

Item code: DC 12038 (two rotating directions)

Housing: Thermoplastic PBT, UL94V-0

Impeller: Thermoplastic PBT, UL94V-0

Lead Wire: UL 1007 AWG#24
                   “+” Red,“-” Black

Available Option: “Sensor” Yellow,“PWM” Blue

Operating Temperature: -10℃ to +70℃,35%-85%RH for Sleeve Type
                                        -20℃ to +80℃,35%-85%RH for Ball Type


Performance Parameter
Model Rated Voltage Operation Voltage Rated Current Rated Speed Air Flow Air Pressure Noise Level
V DC V DC A RPM CFM MmH2O dBA
AM12038M12 12V 7.0-13.8 0.60 3000 120.6 7.5 43
AM12038L12 7.0-13.8 0.30 2000 80.5 4.3 34
AM12038M24 24V 15.0-27.6 0.35 3000 120.6 7.5 43
AM12038L24 15.0-27.6 0.20 2000 80.5 4.3 34
AM12038M48 48V 24-55.2 0.22 3000 120.6 7.5 43
AM12038L48 24-55.2 0.12 2000 80.5 4.3 34
