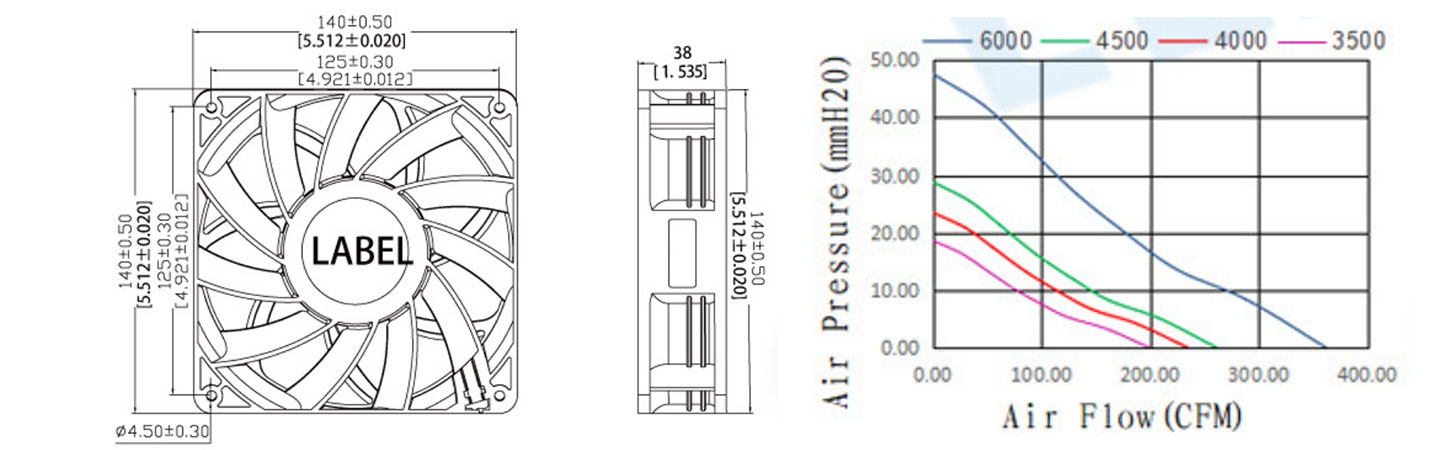

| Size: | 140*140*38mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball |
| Weight: | 400g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Polarity Protection. | |
| 3.Waterproof Level |

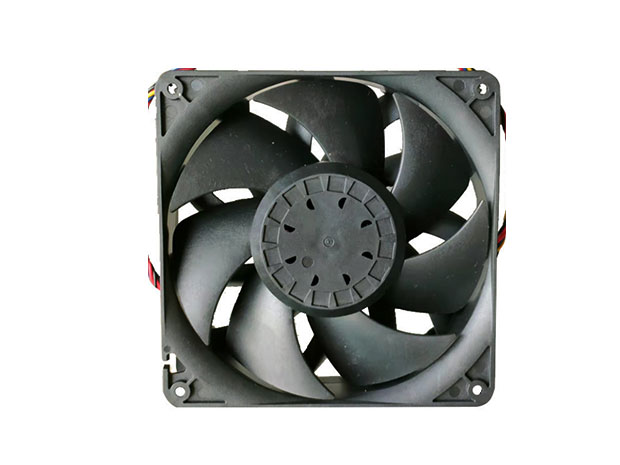

Item code: DC 14038 TURBO FAN
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#22
“+” Red,“-” Black
Available Option: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
--20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | Amp | RPM | CFM | MmH2O | dBA | |
| AMT14038H12 | 12 | 6.0-13.8 | 4.4 | 7500 | 294.12 | 65.05 | 75 |
| AMT14038M12 | 3.5 | 6500 | 270.48 | 35.77 | 70 | ||
| AMT14038L12 | 1.7 | 5000 | 208.32 | 26.63 | 66 | ||
| AMT14038H24 | 24 | 12.0-27.6 | 2.2 | 7500 | 294.12 | 65.05 | 75 |
| AMT14038M24 | 1.8 | 6500 | 270.48 | 35.77 | 70 | ||
| AMT14038L24 | 0.9 | 5000 | 208.32 | 26.63 | 66 | ||
| AMT14038H48 | 48 | 24.0-55.2 | 1.2 | 7500 | 294.12 | 65.05 | 75 |
| AMT14038M48 | 1 | 6500 | 270.48 | 35.77 | 70 | ||
| AMT14038L48 | 0.5 | 5000 | 208.32 | 26.63 | 66 |
