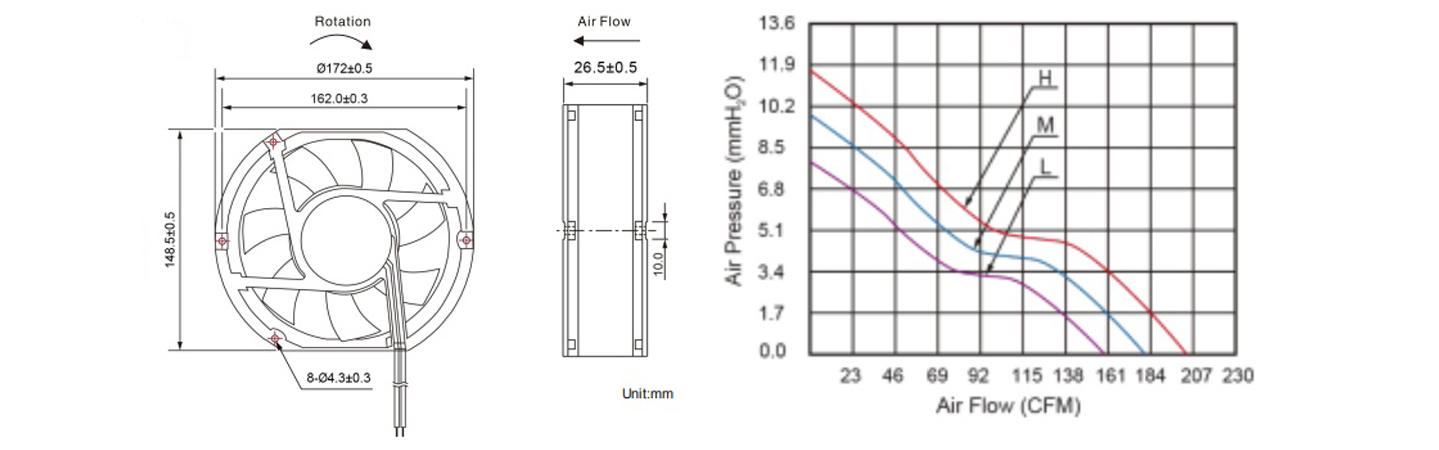

| Size: | 172*148*26mm |
| Motor: | DC brushless fan motor |
| Bearing: | Ball |
| Weight: | 750g |
| No. of Pole: | 4 Poles |
| Rotating Direction: | Counter-Clockwise |
| Optional Function: | 1.Lock Protection |
| 2.Polarity Protection. | |
| 3.Waterproof Level |
Item code: DC 17225
Housing: PBT, UL94V-0
Impeller: PBT, UL94V-0
Lead Wire: UL 1007 AWG#22
“+” Red,“-” Black
Available Option: “Sensor” Yellow,“PWM” Blue
Operating Temperature: -10℃ to +70℃ for Sleeve Type
--20℃ to +80℃ for Ball Type
| Model | Rated Voltage | Operation Voltage | Power | Rated Current | Rated Speed | Air Flow | Air Pressure | Noise Level |
| V DC | V DC | W | A | RPM | CFM | MmH2O | dBA | |

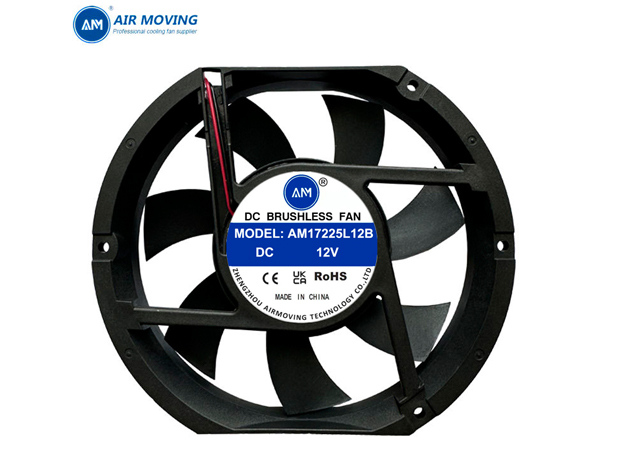

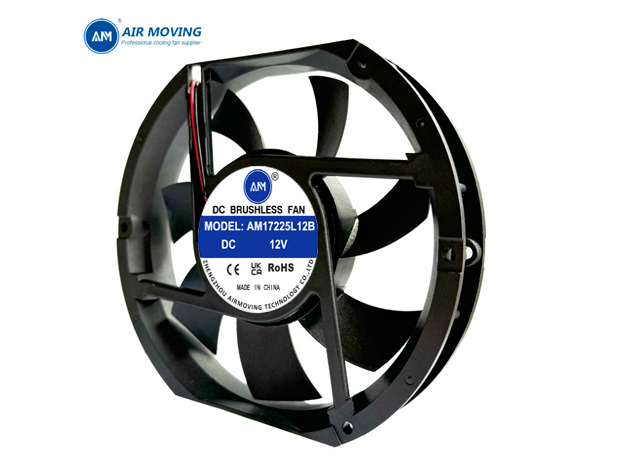

| AM17225L12B | 12.0 | 6.0-13.8 | 6.72 | 0.56 | 2400 | 160.8 | 7.70 | 46 |
| AM17225M12B | 9.12 | 0.76 | 2700 | 181.3 | 9.70 | 49 | ||
| AM17225H12B | 11.76 | 0.98 | 3000 | 202.5 | 11.80 | 52 | ||
| AM17225L24B | 24.0 | 12.0-27.0 | 7.44 | 0.31 | 2400 | 160.8 | 7.70 | 46 |
| AM17225M24B | 9.60 | 0.40 | 2700 | 181.3 | 9.70 | 49 | ||
| AM17225H24B | 16.32 | 0.68 | 3000 | 202.5 | 11.80 | 52 |
